mikrotik

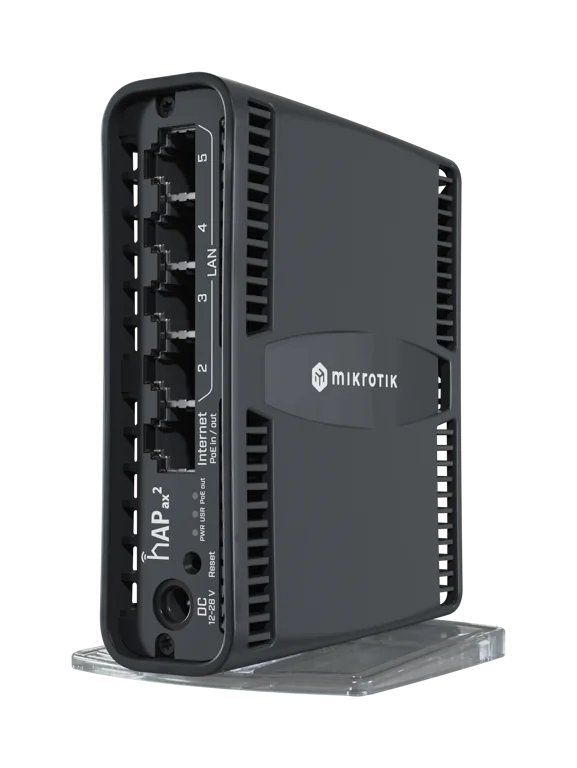

Router Board MIKROTIK (C52iG-5HaxD2HaxD-TC)
Router / • 802.11b/g/n/ax
Price
฿4,275
SKU: A0183826
Technical Specifications
Network Specifications
Device TypeRouter
Wi-Fi Standard• 802.11b/g/n/ax
Speed• Wireless 2.4 GHz Max data rate : 574 Mbit/s / • Wireless 5 GHz Max…
Build
Ports• 4x 10/100/1000 Ethernet ports, • 1x 10/100/1000 Ethernet ports (PoE-out)
Antenna• Antenna gain dBi for 2.4 GHz : 4 • Antenna gain dBi for 5…
Warranty3Y
Additional Specifications
Antennas• Antenna gain dBi for 2.4 GHz : 4 • Antenna gain dBi for 5 GHz : 4.5
Certification• CE, FCC, IC, EAC, ROHS
Cpu Core Count• 4
Data Rate• Wireless 2.4 GHz Max data rate : 574 Mbit/s • Wireless 5 GHz Max data rate : 1200 Mbit/s
Dimension(W x D x H) : 12.00 x 10.10 x 3.70 cm
Environment• -40°C to 50°C
Features• CPU : Quad-core CPU • PoE : PoE-in & PoE-out • Operating System : ROS v7 • Wireless Standard : WiFi 6 • Wireless Feature : Dual-band
Firewall• YES
Frequency• 2.4 GHz • 5 GHz
Interface• 4x 10/100/1000 Ethernet ports • 1x 10/100/1000 Ethernet ports (PoE-out)
Management• WinBox • WebFig • Command Line Interface • MikroTik App
Net Weight0 kg
Package Contents• 24V 1.2A power supply (straight plug) • K-47 wall mount set • hAP case base
Power Consumption• Max power consumption : 27 W • Max power consumption without attachments : 12 W
Power Supply• 12-28 V
Power Supply Poe• PoE in : Passive PoE • Cooling type : Passive • PoE in input Voltage : 18-28 V • PoE-out ports : Ether 1 • PoE out : Passive PoE • Low voltage PoE-Out current limit : 600 mA • Max total out (A) : 0.6 A • Total output current : 0.6 • Total output power : 16.8W
Processor Specs• Architecture : ARM 64bit • CPU : IPQ-6010 • CPU nominal frequency : 864 MHz • CPU Threads count : 4 • Switch chip model : IPQ-6010
Size Of Ram• Size of RAM : 1 GB • Storage size : 128 MB
Standards• 802.11b/g/n/ax
Wireless Functions• WPA3 advanced encryption
Warranty:3Y
