mercusys

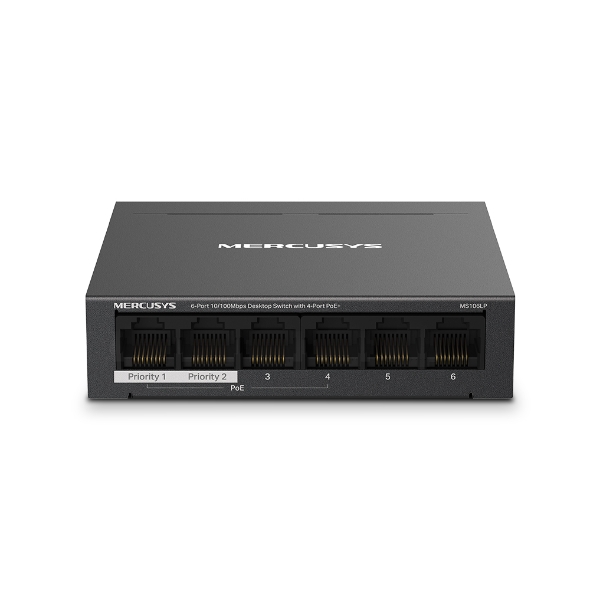

Switching Hub 6 Port MERCUSYS MS106LP 6 Port (4",4 PoE)
Switch / N/A (Wired)
Price
฿510
SKU: A0156180
Technical Specifications
Network Specifications
Device TypeSwitch
Wi-Fi StandardN/A (Wired)
Speed10/100
Build
Ports6 x 10/100 Mbps PoE ports, 2 x 10/100 Mbps Uplink ports
AntennaNone (Internal)
Warranty3Y
Additional Specifications
CertificationsCE, RoHS
Dimension(W x D x H) : 9.98 x 9.80 x 2.50 cm
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing
Forwarding RateStore and Forward
Gross Weight0.45 KG
Jumbo Frame2 KB
Led IndicatorsPower, Link/Act, PoE Status
Mac Address Table2k, Auto-learning, Auto-aging
MaterialMetal
Net Weight0 kg
Network Interface6 x 10/100 Mbps PoE ports 2 x 10/100 Mbps Uplink ports
Package ContentsMS106LP Power Adapter Rubber Feet Quick Installation Guide
Package Dimension(W x D x H) : 12.00 x 14.05 x 8.05 cm
PoePoE Standard: compatible with 802.3af/at PDs PoE Port 1–4, up to 30 W per port PoE Power Budget 40 W
Power Consumption1.87W (22/50 Hz, no PD connected) 44.8W (220/50 Hz, with 40W PD connected)
Power SupplyExternal Power Adapter (Output: 53.5V/0.81A)
SecurityOne click to divide traffic for specific ports for stability and security
Standards And Protocols802.3 af/at Powered Devices
Switching Capacity1.2 Gbps
Volume1,357.23 cm3
Warranty:3Y
