mercusys

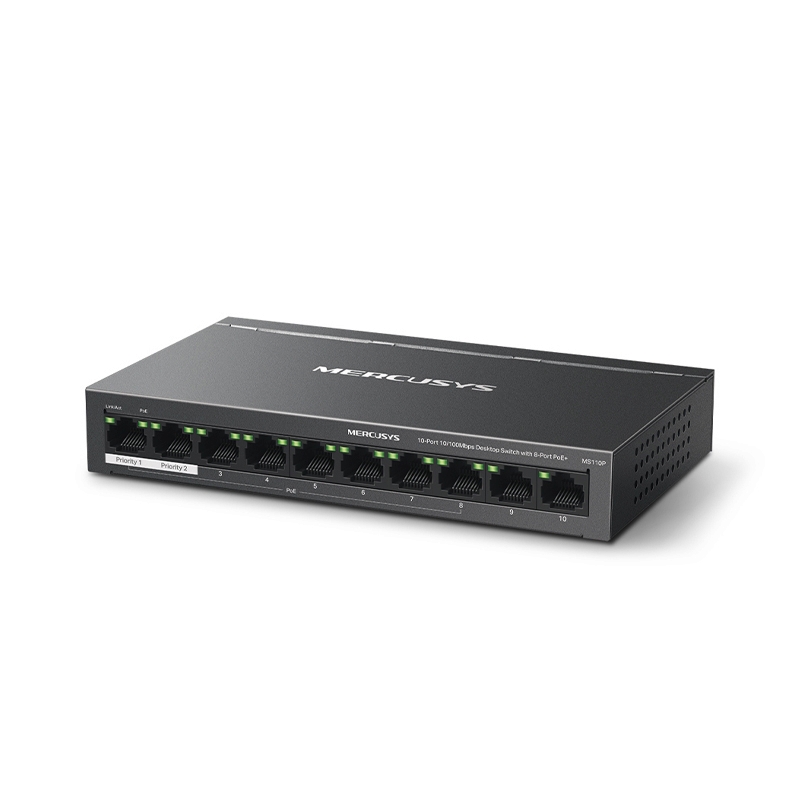

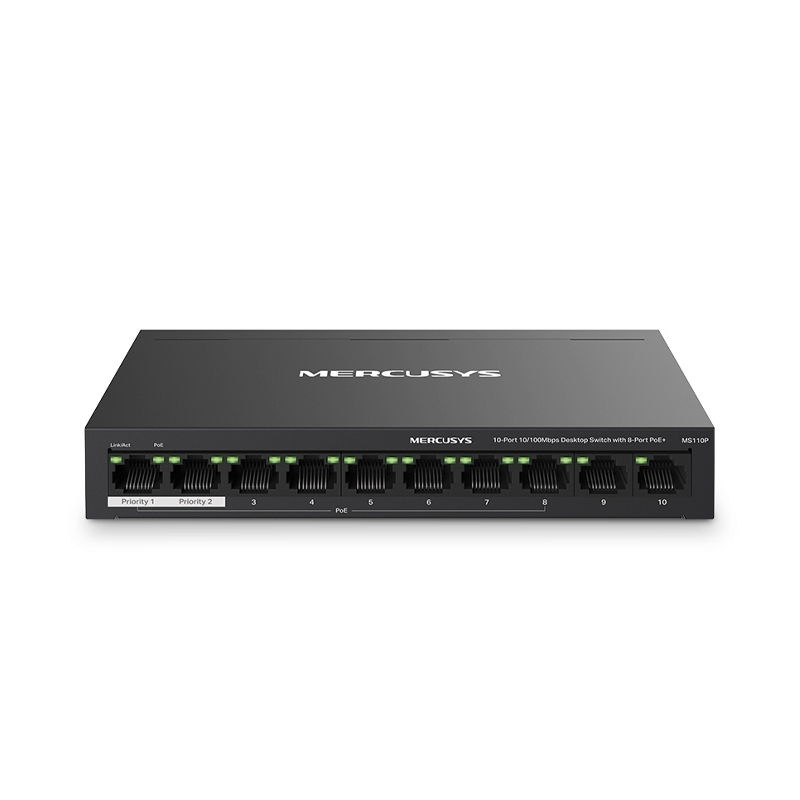

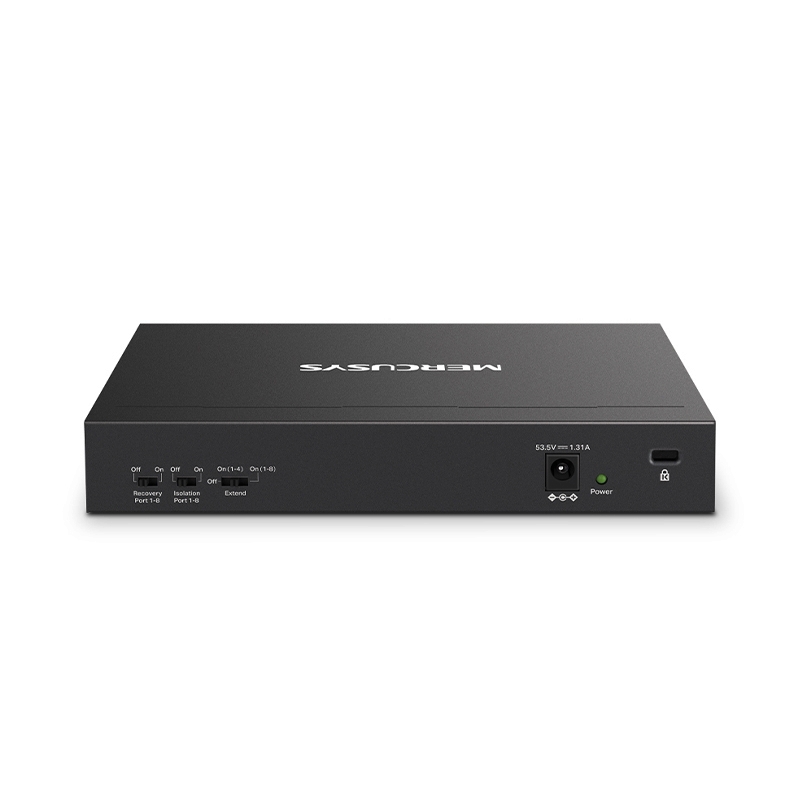

Switching Hub 10 Port MERCUSYS MS110P (7'',8 PoE)
Switch
Price
฿876
SKU: A0156179
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100
Build
Ports10
Warranty3Y
Additional Specifications
Dimension(W x D x H) : 17.10 x 9.80 x 2.70 cm
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing
Forwarding RateStore and Forward
Gross Weight0.68 KG
Jumbo Frame2 KB
Led IndicatorsPower, Link/Act, PoE Status
Mac Address Table2K
MaterialMetal
Net Weight0 kg
Network Interface8 x 10/100 Mbps PoE ports 2 x 10/100 Mbps Uplink ports
Package ContentsMS110P Power Adapter Quick Installation Guide
Package Dimension(W x D x H) : 12.05 x 18.03 x 8.03 cm
PoePoE Standard: compatible with 802.3af/at PDs PoE Port 1–8, up to 30 W per port PoE Power Budget 65 W
Power Consumption2.96W (22/50 Hz, no PD connected) 77.52W (220/50 Hz, with 65W PD connected)
Power SupplyExternal Power Adapter (Output: 53.5V/1.31A)
SecurityOne click to divide traffic for specific ports for stability and security
Standards And Protocols802.3 af/at Powered Devices
Switching Capacity2 Gbps
Volume1,744.61 cm3
Warranty:3Y
