honeywell

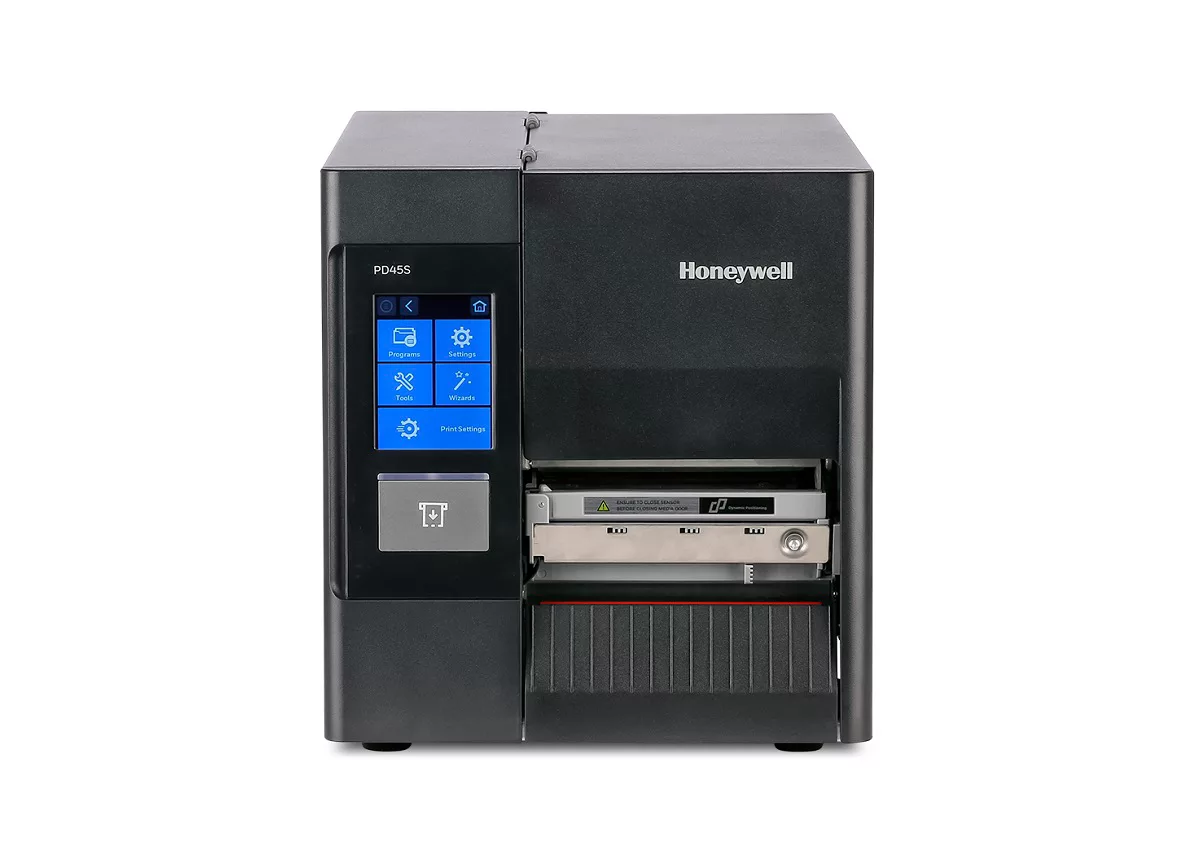

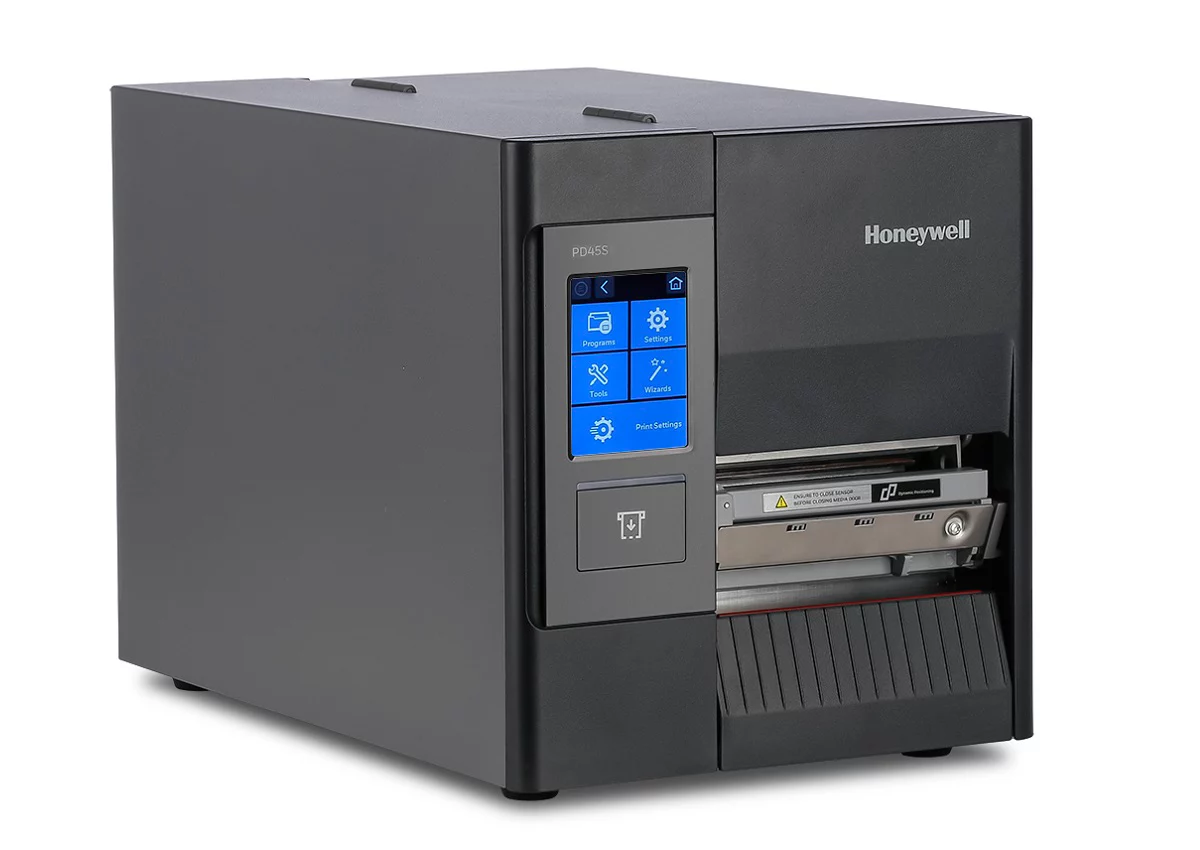

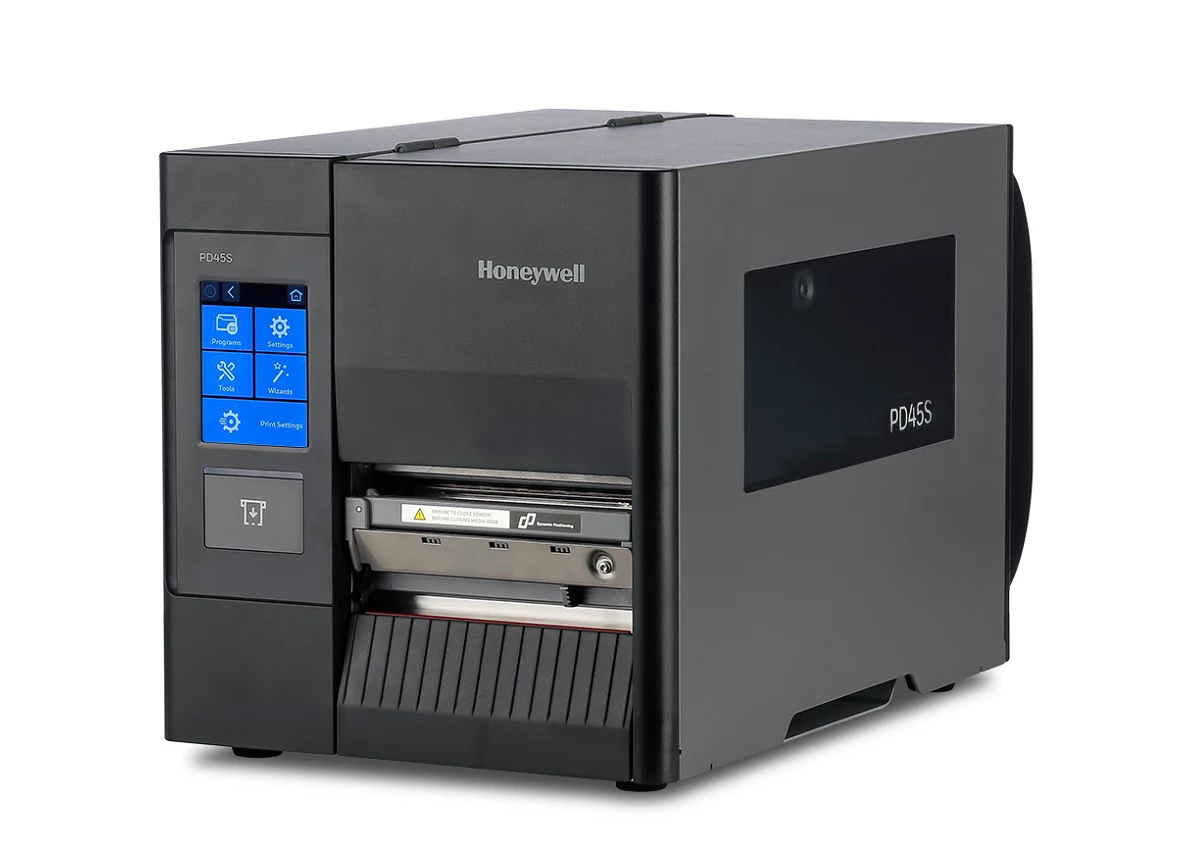

Printer Barcode Honeywell PD45S
203 dpi : 8 dots/mm / 1 x USB 2.0 host interface 1 x USB 2.0 device interface 1 x Ethernet interface, transmission rate: 10/100 Mbps 1 x RS-232, transmission rate up to 115.2 KB/s It supports the following serial port protocols: • Fingerprint/Direct Protocol : XON/ XOFF, ENQ/ACK, RTS/CTS • IPL : XON/XOFF, Honeywell Std. Protocol
Price
฿28,119
SKU: A0166999
Technical Specifications
Print Speed203 dpi : 50 - 250 mm/s (2-10 ips)
Resolution203 dpi : 8 dots/mm
DuplexNo
ADFNo
Memory256 MB flash memory 256 MB DDR3 SDRAM
Scanner
Connectivity
Interface1 x USB 2.0 host interface 1 x USB 2.0 device interface 1 x Ethernet interface, transmission rate: 10/100 Mbps 1 x RS-232, transmission rate up to 115.2 KB/s It supports the following serial port protocols: • Fingerprint/Direct Protocol : XON/ XOFF, ENQ/ACK, RTS/CTS • IPL : XON/XOFF, Honeywell Std. Protocol
Consumables
CartridgeN/A (thermal/ribbon-based, not cartridge)
Additional Specifications
BarcodeSupporting all main 1D and 2D symbols Supporting standards: UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label, OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Label and Global Transport Label)
Dimension(W x D x H) : 27.00 x 43.80 x 24.90 cm
EnvironmentOperating temperature : +5°C to +40°C (+41°F to +104°F) Storage temperature : -20°C to +70°C (-4°F to +158°F) Humidity : 20% to 85%, non-condensing
FontMonotype font engine; non-Latin fonts can be supported through WTLE, and customers can also download (Truetype) fonts by themselves.
Gross Weight11.58 KG
MediaNon-continuous label paper, black label paper, tag paper, guide hole paper, notch paper or continuous label paper Maximum/minimum width (label and liner) : 114/20 mm (4.5/0.79 in) Minimum label length Paper tearing mode : 5.0 mm (0.197 inches) Self-peeling mode : 12.7 mm (0.5 inches) Cutter Mode : 38.0mm (1.5 inches) Thickness (label and liner) : 3 mil to 10 mil (0.076mm to 0.255mm) Configuration : External roll paper or folding paper Maximum diameter of label roll : 203.2 mm (8.0 inches) Label roll core : 76 mm (3.0 inches)/25.4mm (1.0 inches)
Net Weight9.3 kg
Package Contents* No Power Cord (sold separately)
Package Dimension(W x D x H) : 36.00 x 54.00 x 37.00 cm
Power SupplyPFC power supply with the rated power of 100W AC voltage: 100V AC to 240V AC, 50Hz to 60Hz
Print Length203 dpi : 4.8 m (15.75 ft)
Print MethodDirect Thermal & Thermal Transfer
Print Width203 dpi : 108 mm (4.25 inches)
ProcessorArm Cortex®-A7, 800MHz
RibbonRibbon supporting : Inner carbon or outer carbon Maximum roll diameter : 80 mm (3.15 inches), about 450 m (1,476 feet) Roll core ID : 25.4 mm (1 inch) Max. /Min. Width (ribbon and roll core) : 110/51 mm (4.33/2.0 inches) Type : Wax base, mixed base and resin base
SensorDual-sensor Positioning Technology Ensuring the minimum label height of 5mm and the position accuracy of ±0.5mm with the dynamic positioning function.
Short SpecDirect Thermal & Thermal Transfer / Speed 8 นิ้วต่อวินาที / 203dpi / Ribbon 110x300mm / กระดาษ 0.79-4.5 นิ้ว
Special FeaturesPrinter command languages : Fingerprint (FP), Direct Protocol (DP), IPL, ZSim2 (ZPL-II), DPL; XML can be enabled for SAP AII and Oracle WMS; SMART PRINTING languages : Honeywell’s special C# languages for printers: Smart Printing Developer Resource Kit; write application in the development environment compatible with .NET.
System SupportApplication programs /Driver programs : InterDriver Windows printer drive and one-key installation driver, CUPS driver for Linux, program packages for Honeywell device type for SAP and Honeywell label design and printing
Volume71,928.00 cm3
Warranty:1 Year
