hikvision

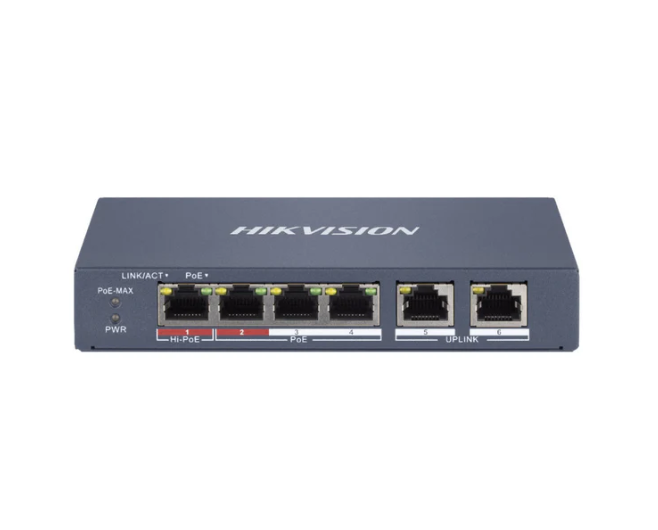

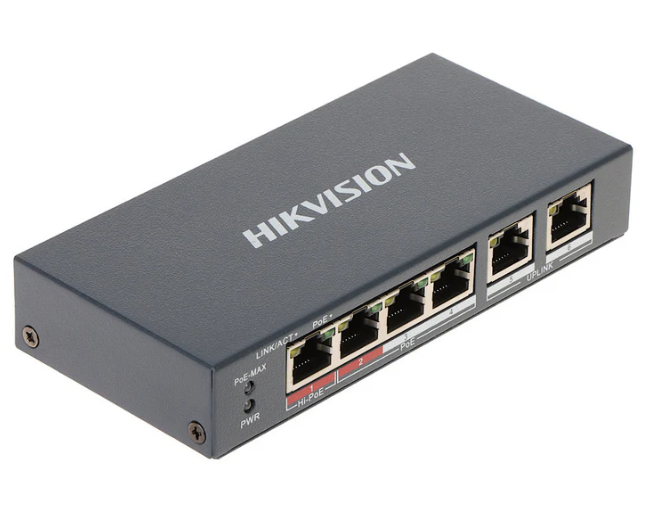

Switching Hub 4 Port HIKVISION DS-3E1106HP-EI (6",4 PoE)
Switch
Price
฿1,082
SKU: A0158630
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100
Build
Ports4
Warranty3Y
Additional Specifications
CertificationsUL (UL 60950-1) CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition) CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
Dimension(W x D x H) : 14.50 x 2.56 x 6.84 cm
EnvironmentOperating Temperature : 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F) Operating Humidity : 5% to 95% (no condensation) Relative Humidity : 5% to 95% (no condensation)
Forwarding Rate0.90 Mpps
Gross Weight0.75 KG
Mac Address Table2 K
MaterialMetal
Net Weight0.24 kg
Network Interface4× 10/100 Mbps PoE port 2× 10/100 Mbps RJ45 port
Package Dimension(W x D x H) : 11.00 x 19.00 x 9.51 cm
PoeMax. Port Power : 60 W,30 W PoE Power Budget : 60 W
Power ConsumptionPower Consumption in Idle : 2 W Max. Power Consumption : 65 W
Power Supply48 VDC, 1.35 A
Standards And ProtocolsIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
Switching Capacity1.2 Gbps
Volume1,987.59 cm3
Warranty:3Y
