hikvision

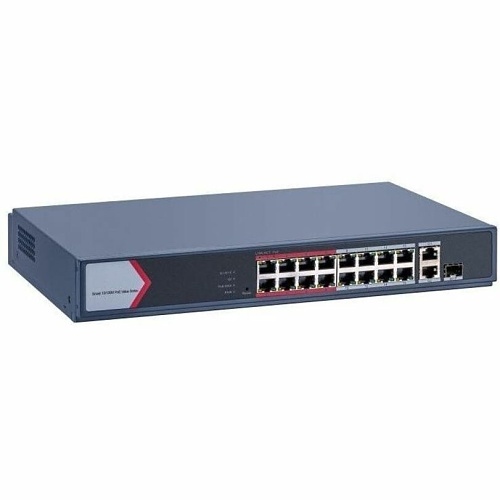

Switching Hub 16 Port HIKVISION DS-3E1318P-EI (17",16 PoE)
Switch
Price
฿5,459
SKU: A0163185
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100
Build
Ports16
Warranty3Y
Additional Specifications
Certifications• CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Dimension(W x D x H) : 44.00 x 22.00 x 4.40 cm
Environment• Operating Temperature : 0 °C to 45 °C (0 °F to 113 °F) • Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F) • Operating Humidity : 5% to 95% (no condensation) • Relative Humidity : 5% to 95% (no condensation)
Features• Support STP/RSTP Loop prevention • Support cable detection to locate failure • Support PoE watchdog to detect and restart the cameras that do not respond
Forwarding Rate• Whole-Device Performance: 6.84 Mpps • Port Performance: 5.36 Mpps
Gross Weight3.38 KG
Led IndicatorsYES
Mac Address Table16 K
Management• Support device management via web • Support management via Hik-Central Pro • Support remote management via Hik-Partner Pro
Material• Metal material
Net Weight2.59 kg
Network Interface• 16× 10/100 Mbps PoE port (230W) • 2× Gigabit combo
Package Dimension(W x D x H) : 54.00 x 31.00 x 9.00 cm
Poe• Max. Port Power : 30W • PoE Power Budget : 230W
Power Consumption• Max. Power Consumption : 250 W • Power Consumption in Idle : 20 W • Surge Protection : 6 kV
Power Supply• 100-240 VAC, 50/60 Hz, Max. 4 A
Security• Ports 1 to 16: port isolation mode to improve network security
Standards And Protocols• IEEE 802.3af,IEEE 802.3at
Switching Capacity• Whole-Device Performance: 9.2 Gbps • Port Performance: 7.2 Gbps
Transmission Method• Up to 300 m Long Range PoE Transmission
Vlan• VLAN is used for network scale planning and network health improvement. • Support 802.1Q. • Configurable VLAN ID from 1-4094. • Support Trunk, Access port mode. • Support Max. 4094 VLAN.
Volume15,066.00 cm3
Warranty:3Y
