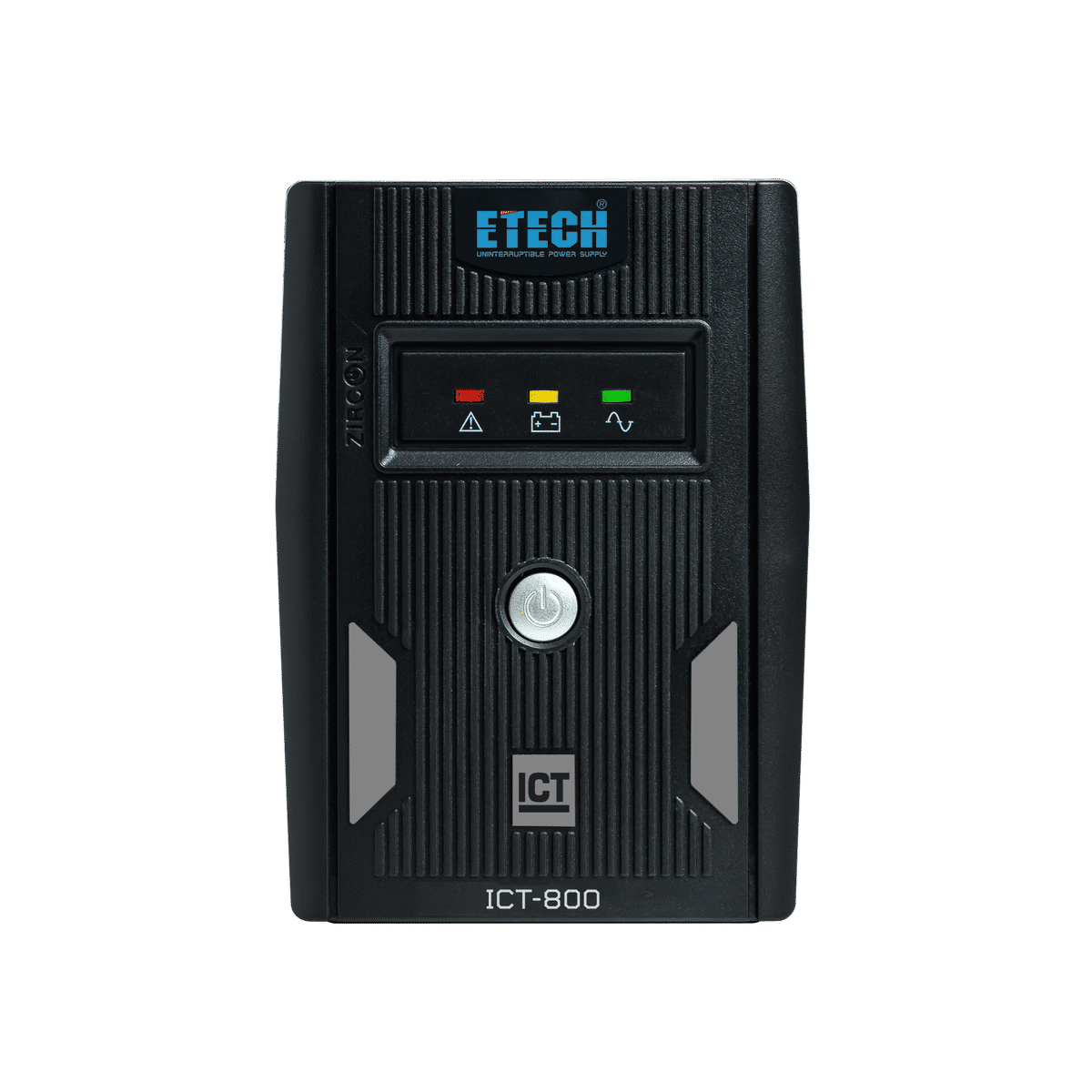

UPS 800VA ETECH ICT สเปค ICT ปี 2567 งบ 2,500 บาท
Line Interactive / 800 VA
Price
฿1,545
SKU: A0155050
Technical Specifications
UPS Specifications
TypeLine Interactive
Capacity (VA)800 VA
Capacity (Watt)480 W
Battery TypeSealed Lead-Acid (standard)
Backup TimeBackup Time 15-30 Mins. (Depend on loads)
Input & Output
Output Socket4 Universal (3 Backup 1 Bypass)
Backup Ports3
Bypass Ports1
Input Voltage220/230/240 VAC +/- 25%
Build
Dimension(W x D x H) : 28.90 x 10.10 x 13.90 cm
Warranty2Y
Additional Specifications
Display• AC Mode • Battery Mode • Charge • Fault
EnvironmentAmbient Temperature : -10 to +40 C Audible Noise : <45 db (1 Meter) Helative Humidity : 95% (non-condensing) Safety : EN 50091-1-1-, EN50091-2
Gross Weight4.60 KG
Input Frequency50/60Hz. +/-10% (Auto sensing)
Net Weight4.2 kg
Nominal Input Voltage220/230/240 VAC +/- 25%
Nominal Output Voltage220/230/240 VAC +/- 10%(AVR,Line), +/-5%(Battery)
Output Connections4 Universal (3 Backup 1 Bypass)
Package Dimension(W x D x H) : 15.00 x 35.00 x 22.00 cm
Rated Capacity800VA / 480W
Transfer Timetypical 2-4 ms.
TypeLine Interactive
Typical Recharge Time4-6 hours (90% after fully discharged)
Volume11,550.00 cm3
Waveform TypeModified Sine Wave
Warranty:2Y
