etech

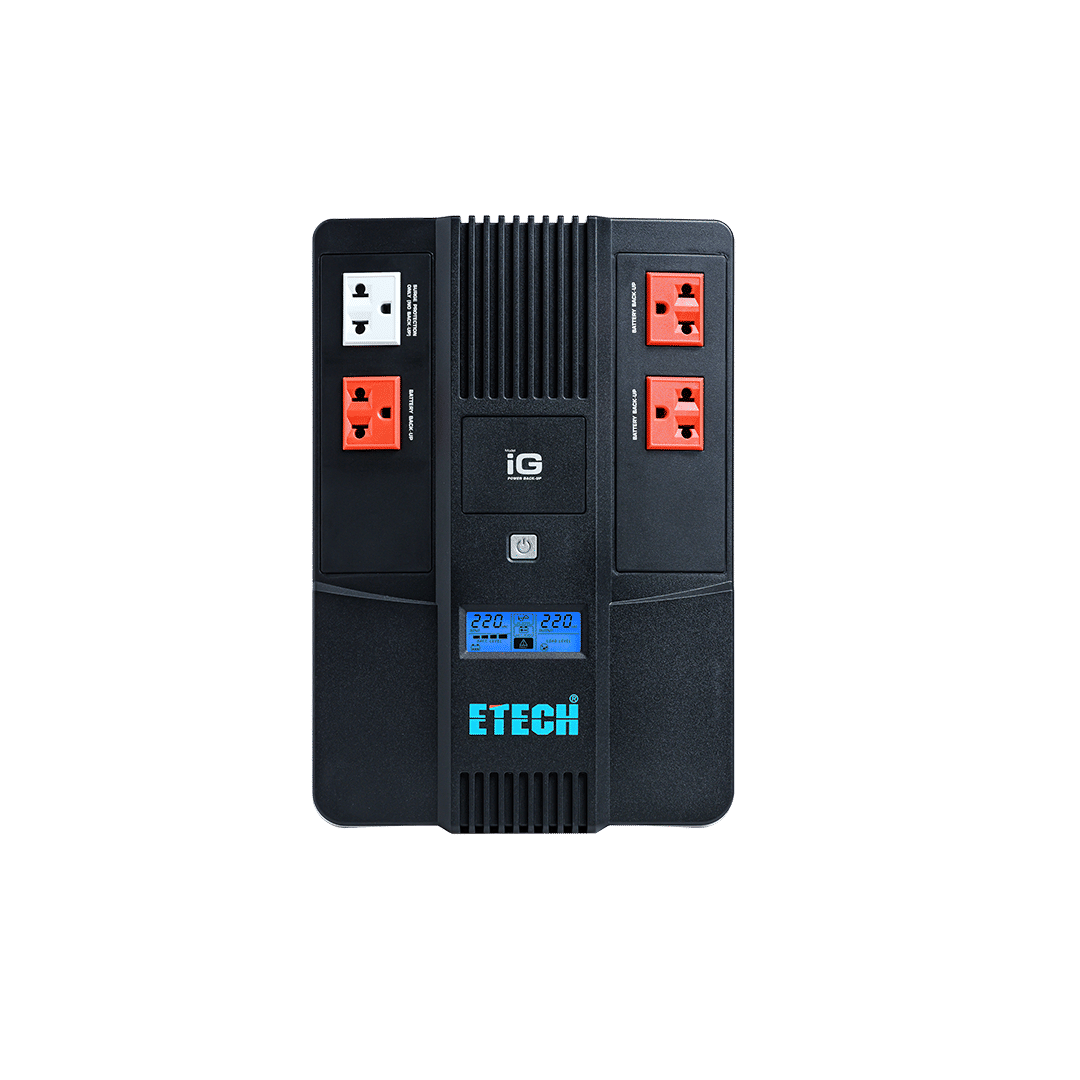

UPS 1000VA ETECH EAZY IG
Line Interactive with Stabilizer, Microprocessor Control / 1000 VA
Price
฿1,875
SKU: A0128927
Technical Specifications
UPS Specifications
TypeLine Interactive with Stabilizer, Microprocessor Control
Capacity (VA)1000 VA
Capacity (Watt)500 W
Battery TypeMaintenance free Sealed Lead-acid Battery
Backup TimeBackup Time 15-30 Mins. (Depend on loads)
Input & Output
Output SocketNot specified by manufacturer
Backup Ports3
Bypass Ports1
Input Voltage220 VAC +/-25%
Build
Dimension(W x D x H) : 29.80 x 10.10 x 14.00 cm
Warranty2Y
Additional Specifications
Battery Replacement1 x 12V / 7AH
DisplayLCD Display : AC Mode. Battery Mode, Low Battery, Overload,Fault & Battery Replace
EnvironmentAmbient Temmperature : O to 40°C Audible Noise : <40db (1Meter) Helative Humidity : 90% (non-condensing) Safety : EN 50091-1-1, EN 50091-2
Gross Weight4.82 KG
Input Frequency50/60Hz. +/-10% (Auto sensing)
Net Weight4.5 kg
Nominal Input Voltage220 VAC +/-25%
Nominal Output Voltage220 VAC +/-10%(AVR, Line),+/-5%(Battery)
Package Dimension(W x D x H) : 13.50 x 36.50 x 25.00 cm
Rated Capacity500 Watts / 1000 VA
Transfer Timetypical 2 ms.
TypeLine Interactive with Stabilizer, Microprocessor Control
Typical Recharge Time4-6 hours (90% after fully discharged)
Volume12,318.75 cm3
Waveform TypeSimulate Sine Wave, Modified Sinewave
Warranty:2Y
