eaton

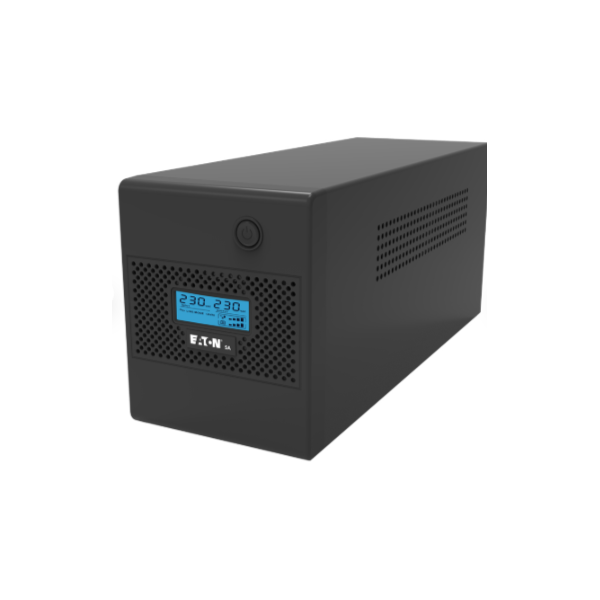

UPS 1200VA EATON P-5A1200I-NEMA-LCD
Line Interactive / 1200 VA
Price
฿2,771
SKU: A0182197
Technical Specifications
UPS Specifications
TypeLine Interactive
Capacity (VA)1200 VA
Capacity (Watt)650 W
Battery TypeSimulated Sine Wave
Backup Time3-15 Min. (Depend on load)
Input & Output
Output Socket5x Backup Putlets 1x Surge Putlets
Backup Ports5
Bypass Ports1
Input Voltage140–300 VAC
Build
Dimension(W x D x H) : 13.80 x 37.00 x 16.50 cm
Warranty2*2*2
Additional Specifications
DisplayLCD
Gross Weight7.20 KG
Indicator Audible Alam Protection• Battery mode • Low Battery • Overload • Battery Replacement Alarm • Fault
Input ConnectionsAC input
Input Frequency60/50 Hz (Auto sensing)
Net Weight6.3 kg
Nominal Input Voltage140–300 VAC
Nominal Output Voltage220/230 (Default) / 240 VAC ±10%
Output Connections5x Backup Putlets 1x Surge Putlets
Package Dimension(W x D x H) : 14.50 x 39.00 x 22.50 cm
Rated Capacity1200VA / 650W
Transfer Time2–6ms typical
TypeLine Interactive
Typical Recharge Time4–6 hours recover to 90% capacity
Volume12,723.75 cm3
Warranty:2*2*2
