dahua

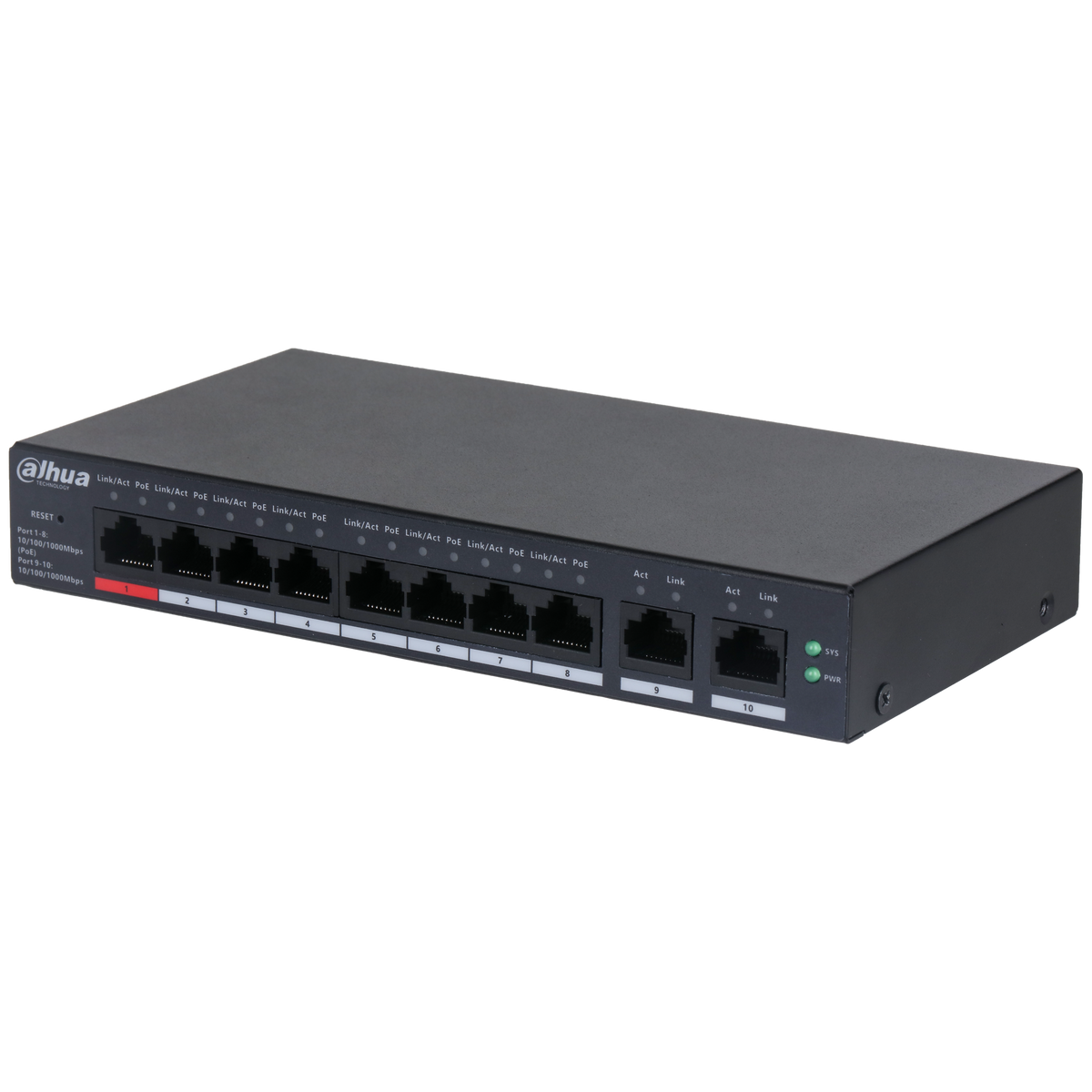

Gigabit Switching Hub 8 Port DAHUA DH-CS4010-8GT-110-V2 (7'',8 PoE)
Switch
Price
฿2,626
SKU: A0174953
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports8
Warranty3Y
Additional Specifications
Buffer Architecture• 4 Mbit
Certifications• CE
Dimension(W x D x H) : 18.46 x 10.33 x 2.70 cm
Environment• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F) • Operating Humidity : 10%–90% (RH), non-condensing • Storage Temperature : –40 °C to +75 °C (–40 °F to +167 °F) • Storage Humidity : 5%–95% (RH), non-condensing
Features• IEEE 802.3x Flow Control • Unknown Unicast Suppression • Multicast Storm Control • Broadcast Storm Control • MAC+Port Binding • Loop Prevention • Static Aggregation
Forwarding Rate• 14.88 Mpps
Gross Weight1.15 KG
Jumbo Frame• 15360 Byte
Led Indicators• YES
Mac Address Table• 8K
Management• Web Management • Cloud Management • Logs • Fault Alarm
Material• Sheet metal
Mtbf• 2,482,955 hours
Net Weight0.36 kg
Network Interface• 8× RJ-45 10/100/1000 Mbps (110W power budget) • 2× RJ-45 10/100/1000 Mbps (uplink)
Package Contents• 1× User Manual • 1× Legal and Regulatory Information • 1× Power Cord • 1× Power Adapter
Package Dimension(W x D x H) : 14.00 x 25.00 x 11.00 cm
Poe• Port 3-8≤30 W • Port 1-2≤90 W • Total≤110 W
Power Consumption• Idling: 5.7 W • Full load: 115 W
Power Supply• External Power Adapter (54 V, 2.22 A)
Security• Port Isolation
Standards And Protocols• IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az; IEEE 802.3ad ,IEEE 802.3af, IEEE 802.3at; Hi-PoE, IEEE 802.3bt
Switching Capacity• 20Gbps
Vlan• IEEE 802.1Q VLAN
Volume3,850.00 cm3
Warranty:3Y
