dahua

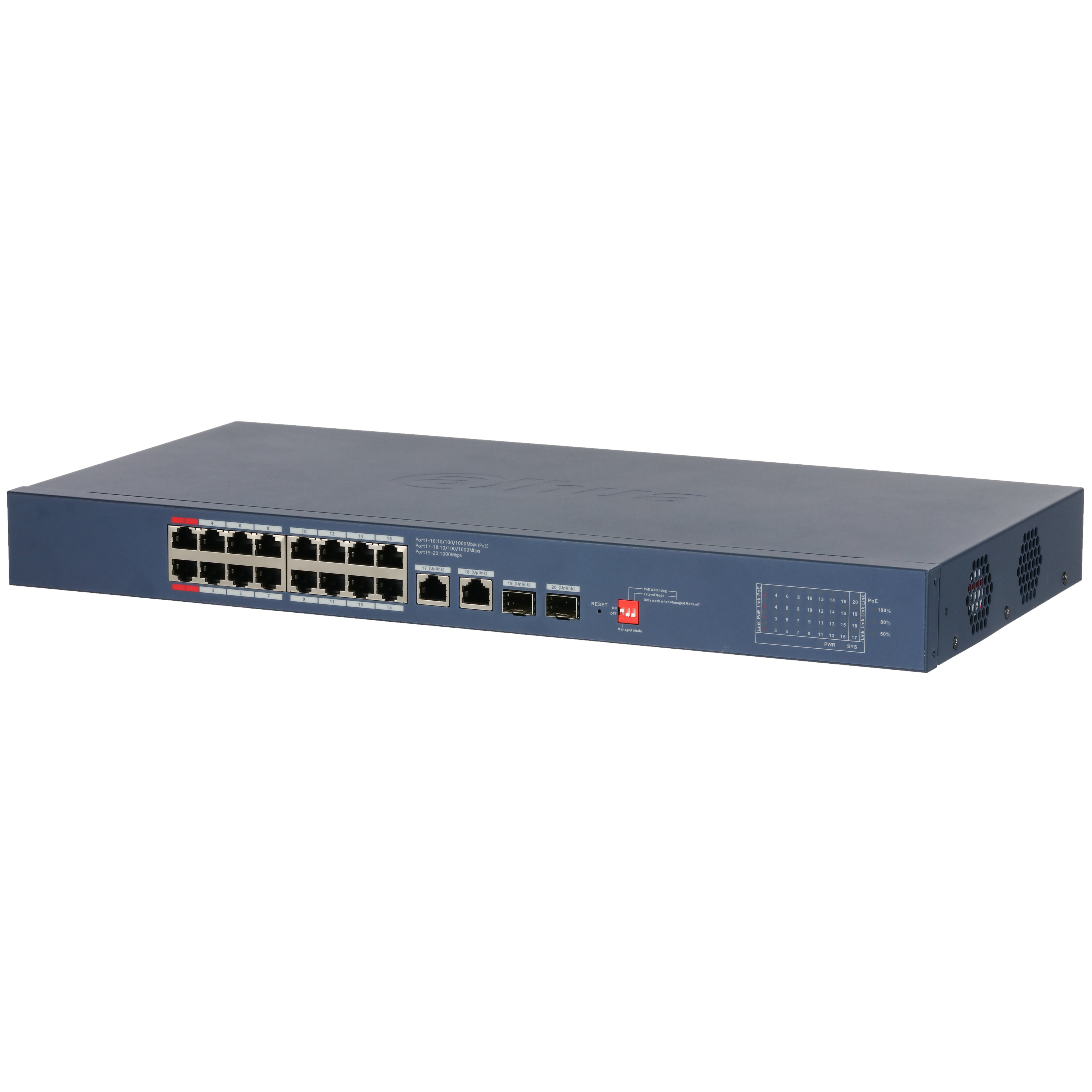

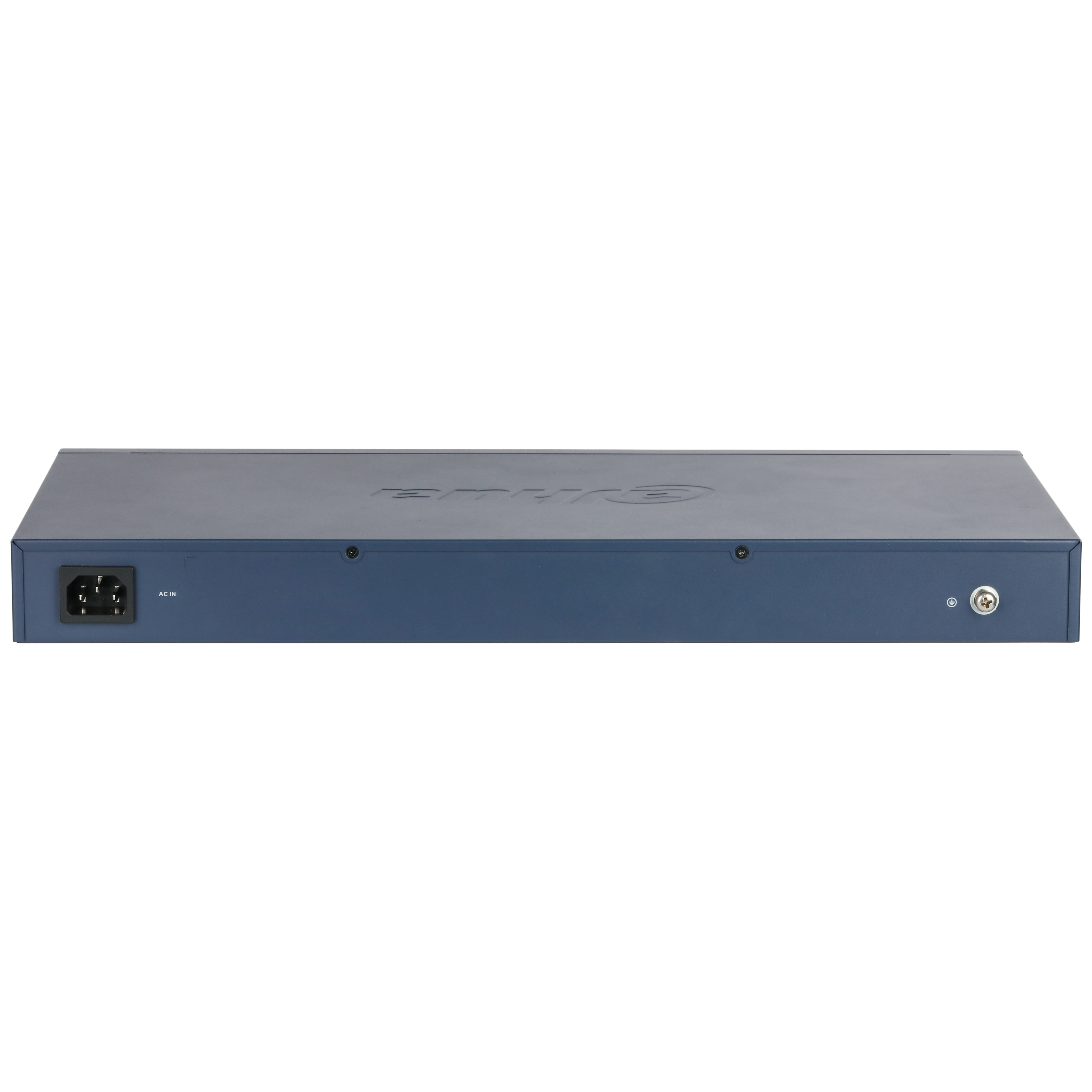

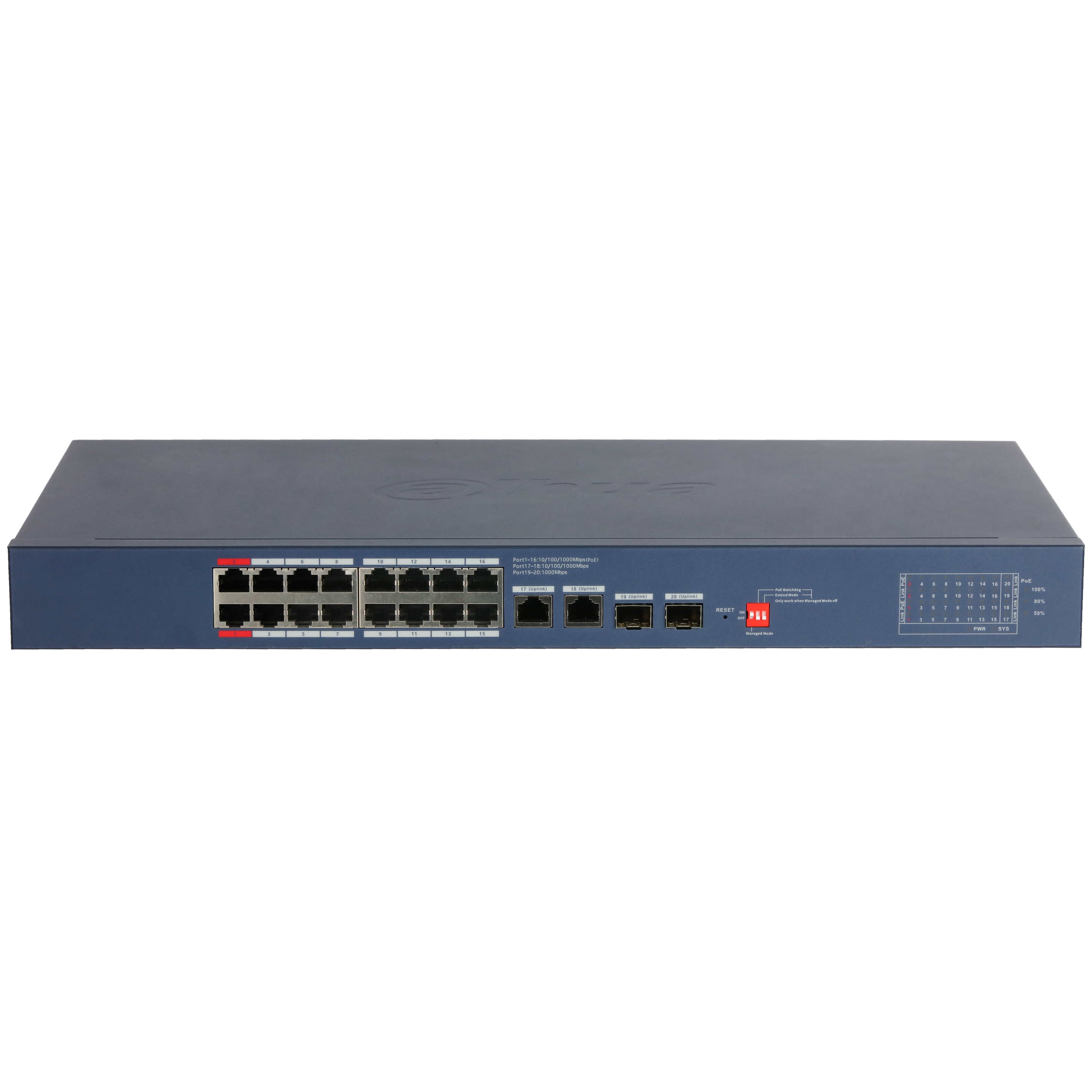

Gigabit Switching Hub 16 Port DAHUA DH-CS-4220-16GT-190 (17",16 PoE)
Switch
Price
฿6,994
SKU: A0174960
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports16
Warranty3Y
Additional Specifications
Buffer Architecture• 4.1 Mbit
Certifications• CE, FCC
Dimension(W x D x H) : 44.00 x 30.00 x 4.40 cm
Environment• Operating Humidity : 5%–95% (RH)
Features• Supports web, and network management software based on SNMP. • Network redundancy: STP/RSTP. • Supports PoE power consumption management, PoE power off management. • Supports IEEE802.3af, IEEE802.3at. • Port 1 and port 2 support IEEE802.3bt, and are compatible with Hi-PoE. • Supports PoE watchdog. • Supports 250 m long-distance transmission mode.
Forwarding Rate• 29.76 Mpps
Gross Weight3.22 KG
Jumbo Frame• 10K Byte
Led Indicators• YES
Mac Address Table• 8K
Management• WEB(http and https) • SNMP V1/V2C/V3
Material• Metal
Mtbf• 467125.73 hours
Net Weight3.4 kg
Network Interface• 16× RJ45 10/100/1000 Mbps (190W power budget) • 2× RJ45 10/100/1000 Mbps • 2 × SFP 1000 Mbps • 1x RJ45 Console
Package Dimension(W x D x H) : 34.00 x 54.00 x 9.00 cm
Poe• Port 1-2: ≤ 90 W • Port 3-16: ≤ 30 W • Total: ≤ 190 W
Power Consumption• Idling load: ≤ 20 W • Full load: 190 W
Power Supply• 100-240 VAC, 50/60 Hz, 3.5 A
Security• IEEE 802.1x • ACL
Standards And Protocols• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad,IEEE802.3af (PoE); IEEE802.3at (PoE+); Hi-PoE; IEEE802.3bt (PoE++)
Switching Capacity• 56Gbps
Vlan• YES
Volume16,524.00 cm3
Warranty:3Y
