d-link

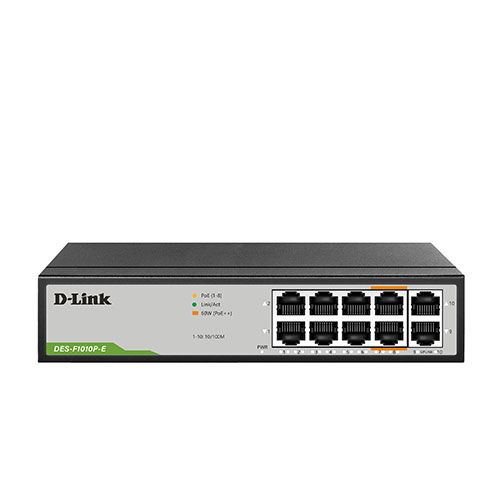

Switching Hub 8 Port D-LINK DES-F1010P-E (5'',8 PoE,+2 UpLINK)
Switch / N/A (Wired)
Price
฿1,494
SKU: A0126561
Technical Specifications
Network Specifications
Device TypeSwitch
Wi-Fi StandardN/A (Wired)
Speed10/100
Build
Ports8 x 10/100 BASE-T ports PoE, 2 x 10/100 BASE-T Uplink ports, Auto MDI/MDI-X adjustment on…
AntennaNone (Internal)
Warranty3Y
Additional Specifications
CertificationsCE, FCC
Dimension(W x D x H) : 13.10 x 19.00 x 4.00 cm
EnvironmentTemperature : Operating: 0 to 40 ˚C (32 to 104 ˚F) Humidity : Operating: 0% to 95% RH non-condensing Storage : 0% to 95% RH non-condensing
Forwarding Rate10M port maximum 14800pps 100M port maximum 148800pps
Gross Weight1.00 KG
Led IndicatorsPower, Link/Activity
Net Weight0.95 kg
Network Interface8 x 10/100 BASE-T ports PoE 2 x 10/100 BASE-T Uplink ports Auto MDI/MDI-X adjustment on all ports
Package Dimension(W x D x H) : 29.00 x 25.00 x 5.00 cm
PoeIEEE 802.3af IEEE 802.3at PoE-Capable 1-8 Ports Lighting Protection 6KV Power Budget 96 W (36 W max. per PoE port) Up to 30 W power output per PoE port
Power SupplyExternal power adapter 60W
Standards And ProtocolsIEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x ow control IEEE 802.3af IEEE 802.3at Lighting Protection 6KV
Transmission MethodAdopt Store-and-forward
Volume3,625.00 cm3
Warranty:3Y
