d-link

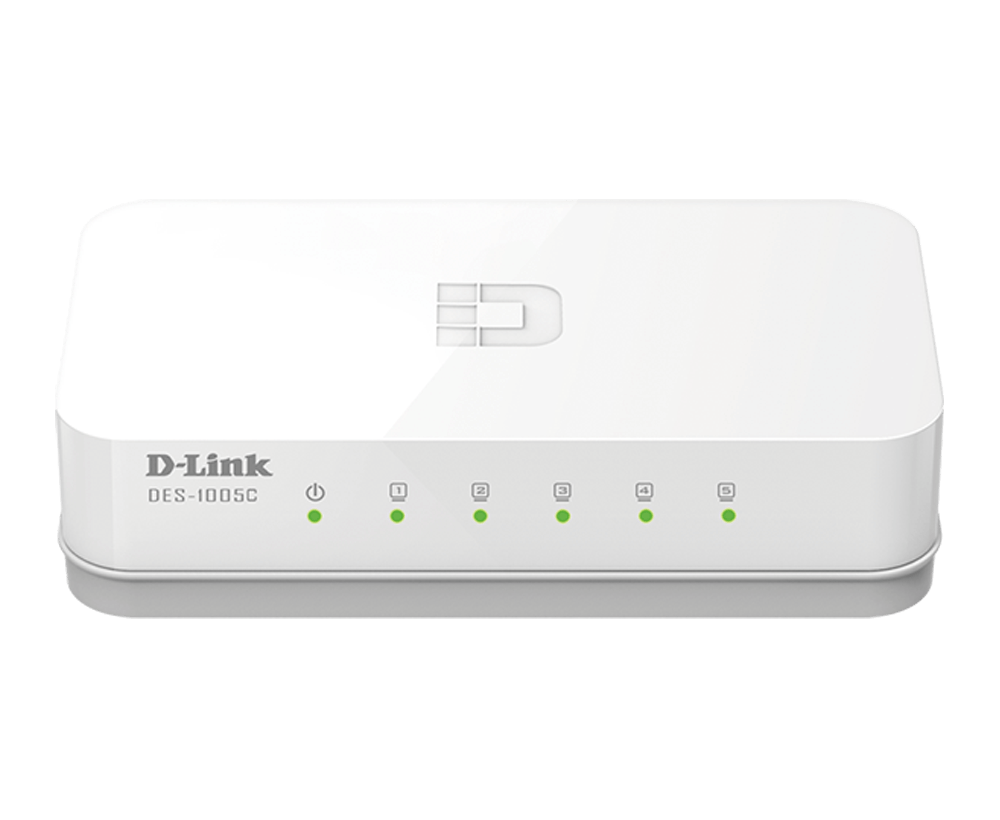

Switching Hub 5 Port D-LINK DES-1005C (4'')
Switch / N/A (Wired)
Price
฿268
SKU: A0130504
Technical Specifications
Network Specifications
Device TypeSwitch
Wi-Fi StandardN/A (Wired)
Speed10/100 Mbps
Build
PortsN/A
AntennaNone (Internal)
WarrantyLT.
Additional Specifications
CertificationsCE Class B CE (LVD 2006/95/EC)
Dimension(W x D x H) : 9.00 x 10.00 x 6.00 cm
EnvironmentTemperature Operating : 0 to 40 °C (32 to 104 °F) Storage : -40 to 70 °C (-40 to 158 °F) Humidity Operating : 10% to 90% non-condensing Storage : 5% to 95% non-condensing
Forwarding RateEthernet : 14,880 pps per port Fast Ethernet : 148,800 pps per port
Gross Weight0.15 KG
Led IndicatorsPer port : Link/Activity/Speed Per device : Power
Mac Address Table2,000
Mtbf1,785,631 hours
Net Weight0.15 kg
Package Dimension(W x D x H) : 9.00 x 10.00 x 6.00 cm
Power ConsumptionPower On (Standby): 0.4 watts Maximum: 0.784 watts
Power SupplyDC 5 V / 0.55 A DC jack: Located on side
Standards And ProtocolsIEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3az Energy-Efficient Ethernet (EEE)
Switching Capacity1 Gbps switching fabric
Transmission MethodStore-and-forward
Volume540.00 cm3
Warranty:LT.
