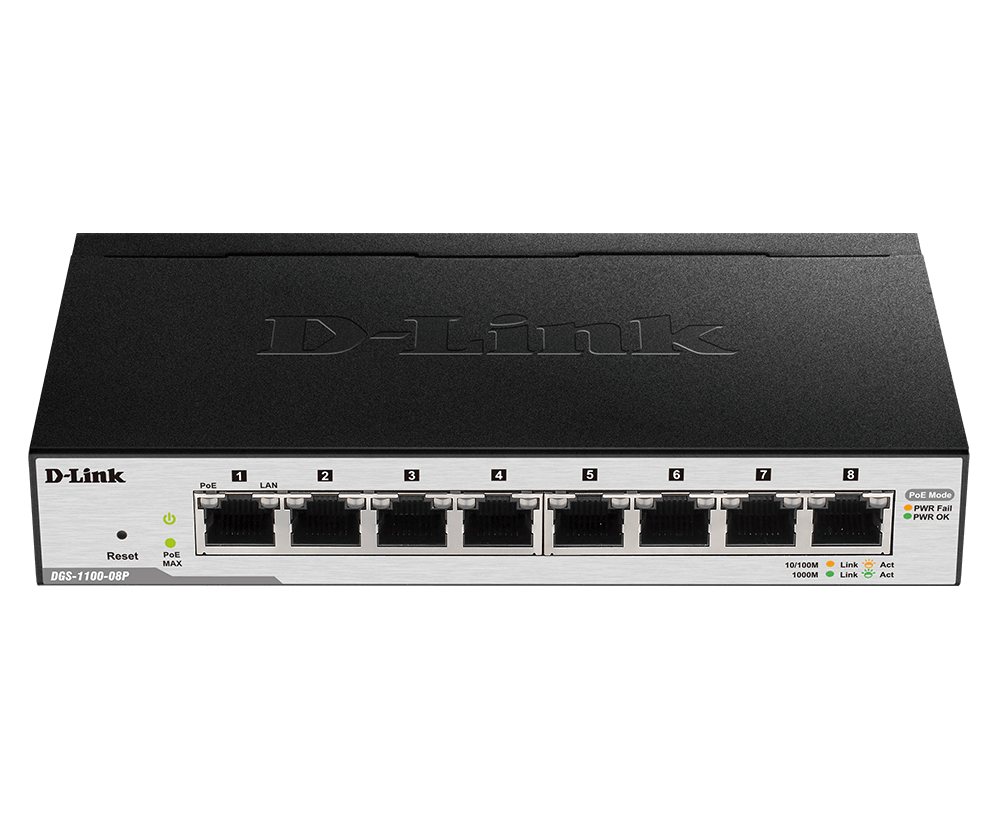

Gigabit Switching Hub 8 Port D-LINK DGS-1100-08P (7",8 PoE)
Switch
Price
฿3,605
SKU: A0106411
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports8
WarrantyLT.
Additional Specifications
Buffer Architecture2 Mbits
CertificationsFCC Class A, CE Class A, VCCI Class A, C-Tick cUL, CE LVD
Dimension(W x D x H) : 19.00 x 12.00 x 3.80 cm
EnvironmentOperating Temperature : 0 to 40 °C (32 to 104 °F) Storage Temperature : -10 to 70 °C (14 to 158 °F) Operating Humidity : 10% to 95% non-condensing Storage Humidity : 5% to 95% non-condensing
Flash Memory2 Mbytes
Forwarding Rate11.9 Mpps
Gross Weight1.24 KG
Mac Address Table4K Entries
ManagementWeb-based GUI (Supports IPv4) Client-based Utility (SmartConsole Utility)
Mtbf708,219 hours
Net Weight0.7 kg
Network Interface8 x 10/100/1000 Mbps PoE
Package Dimension(W x D x H) : 18.00 x 21.00 x 8.00 cm
Packet Buffer MemoryFlash Memory 2 Mbytes
Poe100 to 240 V AC 50 to 60 Hz External Power Adapter
Power Consumption78.8 watts (PoE on) 5.2 watts (PoE off)
Power SupplyPower Input : 100 to 240 V AC / 50 to 60 Hz External Power Adapter Power Consumption : - Standby Mode 2.0 watts - Maximum Power Consumption 78.8 watts (PoE on) / 5.2 watts (PoE off) PoE PoE Standard : IEEE 802.3af PoE Capable Ports : Ports 1 to 8 (15.4 watts max. per PoE port) PoE Power Budget : 64 watts
Standards And ProtocolsIEEE 802.3 compliant IEEE 802.3u compliant IEEE 802.3ab compliant IEEE802.3af (DGS-1100-08P only) Auto-negotiation Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps) Auto MDI/MDIX IEEE 802.3x Flow Control supports fullduplex mode IEEE 802.3az compliant
Switching CapacitySwitching Capacity 16 Gbps
Volume3,024.00 cm3
Warranty:LT.
