d-link

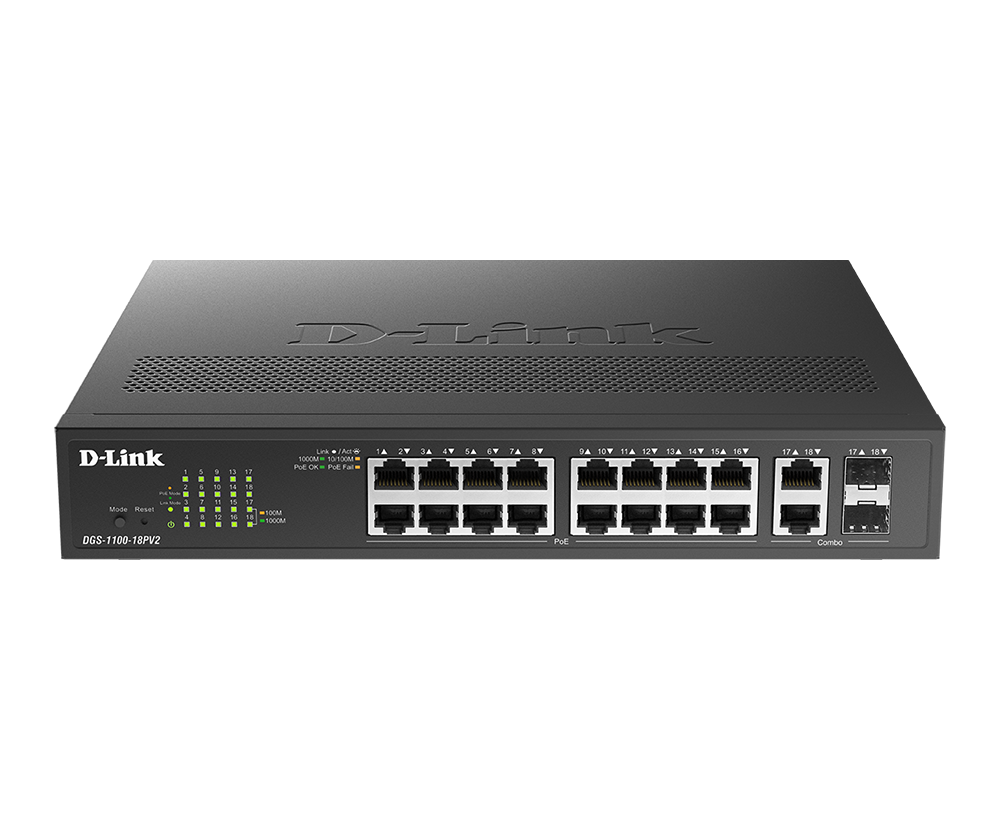

Gigabit Switching Hub 16 Port D-LINK DGS-1100-18P V2 (11",16 PoE)
Switch
Price
฿8,600
SKU: A0167267
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports16
WarrantyLT.
Additional Specifications
Buffer Architecture• 4.1 Mbits
Certifications• cUL, UL, LVD, CB, BSMI
Dimension(W x D x H) : 28.00 x 23.00 x 4.40 cm
Environment• Operating Temperature : -5 to 50 °C (23 to 122 °F) • Storage Temperature : -40 to 70 °C (-40 to 158 °F) • Operating Humidity : 0% to 95% non-condensing • Storage Humidity : 0% to 95% non-condensing
Fan Quantity• Fanless
Features• IGMP Snooping • Bandwidth Control • IEEE 802.1Q VLAN traffic segregation • Port-based VLAN • IEEE 802.1p Quality of Service • Surveillance VLAN • Voice VLAN
Forwarding Rate• 26.78 Mpps
Gross Weight3.08 KG
Jumbo Frame• Up to 9216 bytes
Led Indicators• LED shut-off
Mac Address Table• 8K Entries
Management• Web-based GUI (supports IPv4/IPv6)
Material• Metal
Mtbf• 343,695 hours
Net Weight2.1 kg
Network Interface• 16x 10/100/1000 Mbps (PoE 130 W) • 2x Combo GE/SFP
Package Dimension(W x D x H) : 10.00 x 36.00 x 36.00 cm
Poe• IEEE 802.3af/802.3at • PoE Power Budget : 130 W
Power Consumption• Standby Mode : 10 W • Maximum Power Consumption : 166.7 W (PoE on) , 18.3 W (PoE off )
Power Supply• AC: 100-240V
Security• Static MAC addresses - Up to 32 entries • Traffic segmentation • Broadcast/Multicast/Unknown Unicast Storm Controlort security
Standards And Protocols• IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3az,IEEE 802.3x,IEEE 802.3af/802.3at
Switching Capacity• 36 Gbps
Vlan• Port-based VLAN • 802.1Q tagged VLAN • Auto Surveillance VLAN • Voice VLAN • Management VLAN • Asymmetric VLAN • VLAN Group - Supports 128 static VLAN groups - Max. 4094 VIDs
Volume12,960.00 cm3
Warranty:LT.
