cudy

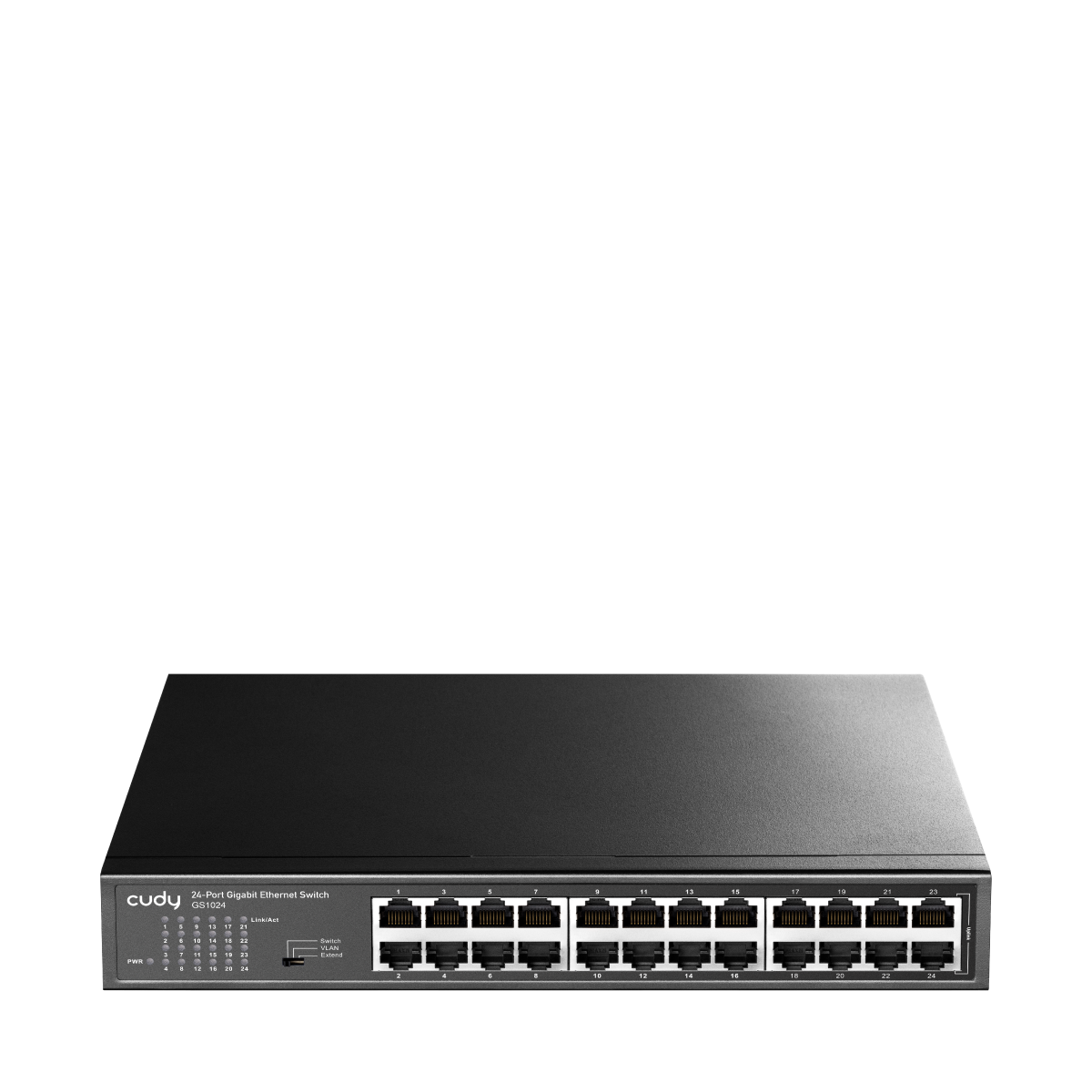

Gigabit Switching Hub 24 Port CUDY GS1024 (11")
Switch / N/A (Wired)
Price
฿2,359
SKU: A0172340
Technical Specifications
Network Specifications
Device TypeSwitch
Wi-Fi StandardN/A (Wired)
SpeedGigabit
Build
Ports• 24x Gigabit RJ45 Ports
AntennaNone (Internal)
WarrantyLT.
Additional Specifications
Buffer Architecture• 4 Mbit
Dimension(W x D x H) : 27.00 x 18.20 x 4.40 cm
Environment• Operating Temperature: 0 °C ~ 40 °C (32 °F ~104 °F) • Storage Temperature: -40 °C ~ 70 °C (-40 °F ~ 158 °F) • Operating Humidity: 10% ~ 90% non-condensing • Storage Humidity: 5% ~ 90% non-condensing
Features• สวิตช์ 24-GbE พร้อมฟังก์ชัน VLAN/Extend และระบบระบายความร้อนแบบไร้พัดลม
Forwarding Rate• 35.712 Mpps
Gross Weight3.26 KG
Jumbo Frame• 15 KB
Led Indicators• Power • Speed/Link/ACT of Each Ethernet Port
Mac Address Table• 8192
Management• IGMP Snooping • Loop Prevention • Loop Detection • DSCP QoS • 02.1p QoS
Material• Metal
Net Weight1.05 kg
Network Interface• 24x Gigabit RJ45 Ports
Package Contents• GS1024 • Power Cord • Installation Guide • Mounting Kit
Package Dimension(W x D x H) : 37.00 x 9.00 x 25.00 cm
Power Consumption• Max Power Consumption : 11W • Idle Power Consumption : 6.8W
Power Supply• 90-260V~, 50/60Hz
Standards And Protocols• 802.3x Flow Control • 802.3i 10BASE-T • 802.3u 100BASE-TX • 802.3ab 1000BASE-T
Switching Capacity• 48 Gbps
Vlan• VLAN/Default/Extend DIP Switch
Volume8,325.00 cm3
Warranty:LT.
