cisco

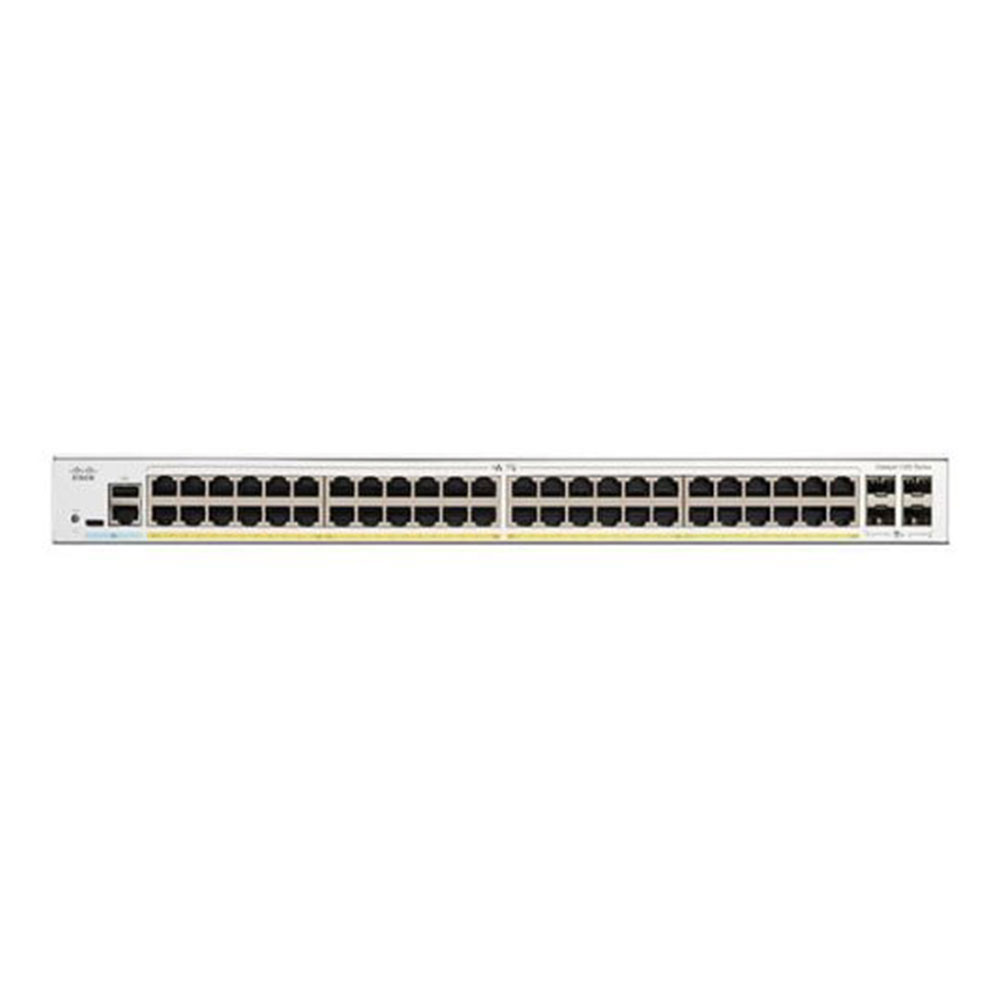

Gigabit Switching Hub 48 Port CISCO Catalyst C1200-48T-4G (17'',+4 SFP)
Switch
Price
฿26,770
SKU: A0156978
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports48
WarrantyLT.
Additional Specifications
CertificationsUL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
CpuDual-core ARM
Cpu Memory1.4 GHz
Dimension(W x D x H) : 44.50 x 28.80 x 4.40 cm
EnvironmentOperating temperature : 23° to 122°F (-5° to 50°C) Storage temperature : -13° to 158°F (-25° to 70°C) Operating humidity : 10% to 90%, relative, noncondensing Storage humidity : 10% to 90%, relative, noncondensing
Fan QuantityFan (number) : 1 Acoustic noise : 25°C: 29.7 dBA
Flash Memory512 MB
Gross Weight5.40 KG
Jumbo FrameFrame sizes up to 9000 bytes. The default MTU is 2000 bytes
Led IndicatorsSystem, Link/Act , Speed
Mac Address Table8K addresses
ManagementCisco Business mobile app Web user interface
MaterialMetal
Mtbf1,452,667 MTBF at 25°C (hours)
Net Weight3.95 kg
Network Interface48x 10/100/1000 ports 4x Gigabit SFP
Package Contents- Cisco Catalyst 1200 Series Switch - Power cord (power adapter for select 8-port and 16-port SKUs) - Mounting kit - Pointer card
Package Dimension(W x D x H) : 9.00 x 57.00 x 42.00 cm
Packet Buffer Memory3 MB
Power Consumption38.07W
Power Supply100 to 240V 50 to 60 Hz
SecuritySecure Sockets Layer (SSL) , SSH Protocol , IEEE 802.1X (authenticator role) , STP loopback guard , Secure Core Technology (SCT) , Secure Sensitive Data (SSD) , Trustworthy systems , Port security , RADIUS , Storm control , DoS prevention , Multiple user privilege levels in CLI , ACLs
Standards And ProtocolsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication
Switching Capacity104Gbps
Usb PortUSB Type C port
Vlan- Support for up to 255 active VLANs simultaneously - Port-based and 802.1Q tag-based VLANs - Management VLAN - Guest VLAN - Auto Surveillance VLAN (ASV)
Volume21,546.00 cm3
Warranty:LT.
