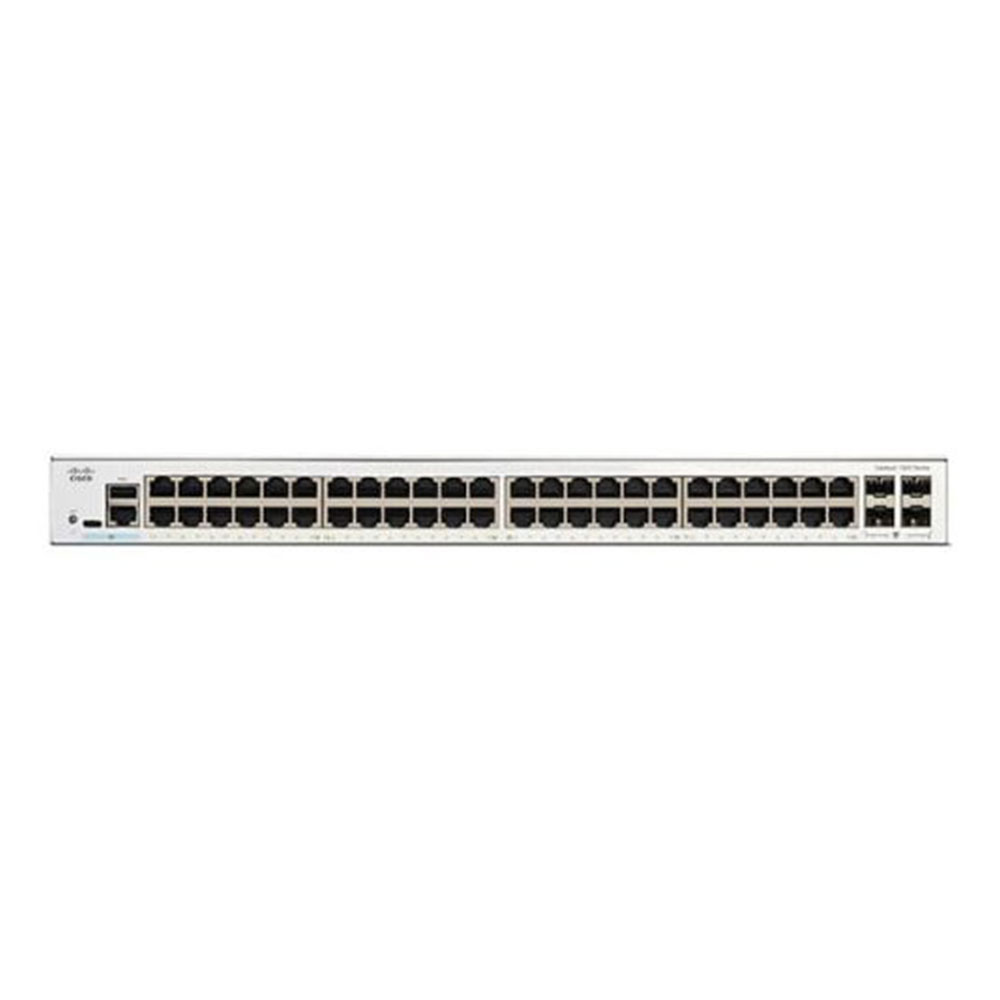

Gigabit Switching Hub 48 Port CISCO C1300-48T-4X (17'',+4 10G SFP)
Switch
Price
฿57,165
SKU: A0179235
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports48
WarrantyLT.
Additional Specifications
Buffer Architecture• 1.5 MB
Certifications• UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Cpu• ARM dual-core at 1.5 GHz
Dimension(W x D x H) : 44.43 x 28.80 x 4.39 cm
Environment• 23° to 122°F (-5° to 50°C)
Fan Quantity• 1x
Features• เหมาะมากสำหรับองค์กรที่ต้องการพอร์ตเชื่อมต่อจำนวนมาก (48 พอร์ต) และต้องการความเร็วระดับ 10G ในพอร์ต Uplink
Flash Memory• Flash : 1GB SLC • DRAM :1 GB DDR4 (C1300); 2 GB DDR4 (C1300X)
Forwarding Rate• 130.94 Mpps
Gross Weight5.40 KG
Jumbo Frame• 9000 bytes
Led Indicators• Yes
Mac Address Table• 16,000
Management• Web-based GUI • Cisco Business Mobile App
Material• Metal
Mtbf• 1,473,382 hours
Net Weight4.35 kg
Network Interface• 48x Gigabit Ethernet • 4x SFP+
Package Contents• Cisco Catalyst 1300 Series • Power Cord • Mounting kit • Pointer card
Package Dimension(W x D x H) : 9.00 x 57.00 x 42.00 cm
Power Consumption• 110V=13.12W • 220V=12.93W
Power Supply• 110V=40.01W • 220V=39.77W
Security• Port security : Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses • RA guard • ND inspection DHCPv6 guard • Neighbor binding table (snooping and static entries) • Neighbor binding integrity check
Standards And Protocols• IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3ae 10, IEEE 802.3an 10GBASE-T 10 Gbps, IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q/p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X,IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB, IEEE 802.3az
Switching Capacity• 176Gbps
Usb Port• 1x USB Type C
Vlan• Support for up to 4094 VLANs (4078 – 4094 are for internal usage) simultaneously • Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN • Management VLAN • Private VLAN with promiscuous, isolated, and community port • Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN • Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication • Customer premises equipment (CPE) VLAN • Auto surveillance VLAN (ASV)
Volume21,546.00 cm3
Warranty:LT.
