cisco

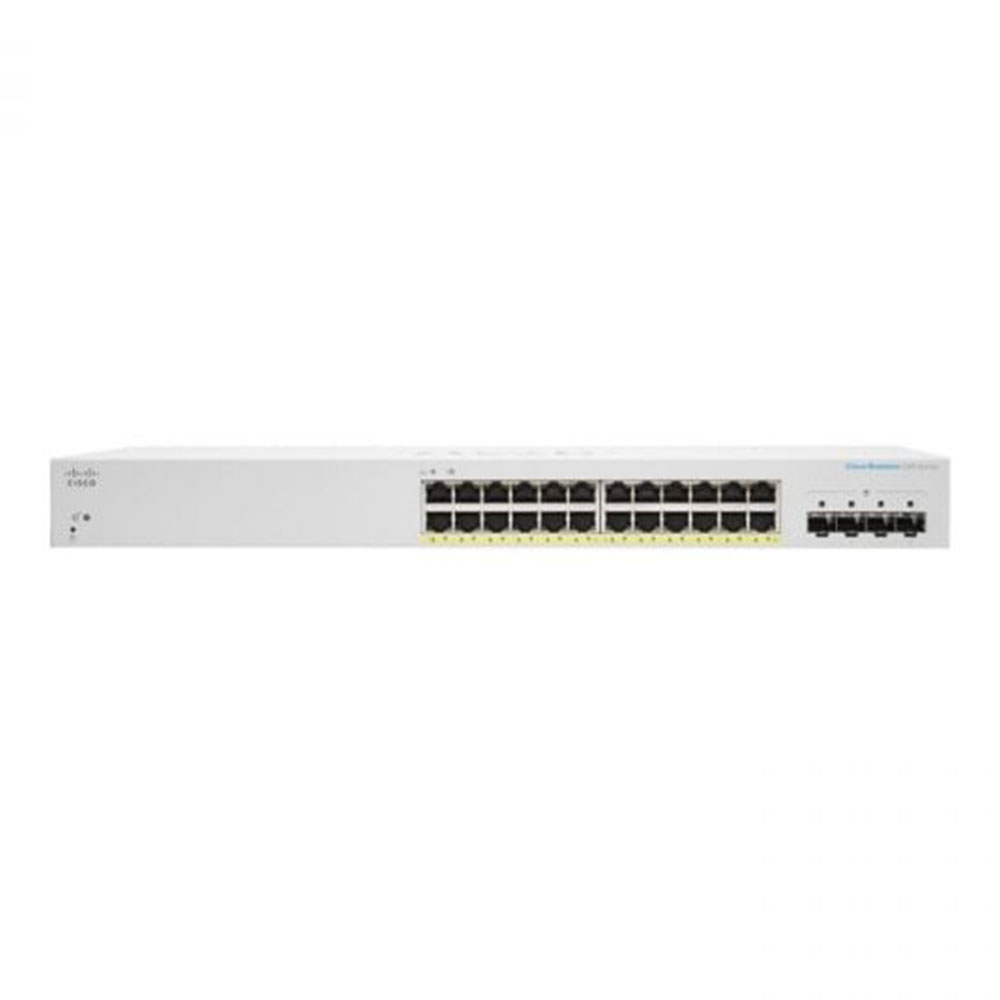

Gigabit Switching Hub 24 Port CISCO CBS220-24P-4X-EU (17'',24 PoE,+4 SFP)
Switch
Price
฿22,959
SKU: A0170177
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports24
Warranty3Y
Additional Specifications
Buffer Architecture• 12 Mb
Certifications• UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick
Cpu Memory• 256 MB
Dimension(W x D x H) : 44.00 x 25.70 x 4.40 cm
Environment• Operating temperature : 0-50° C • Storage temperature : –20° C to +70° C • Operating humidity : 10% to 90%, relative, noncondensing • Storage humidity : 10% to 90%, relative, noncondensing
Fan Quantity• 2
Features• Easy configuration and deployment • Reliability and performance • Power over Ethernet (PoE) • Network security • Optimal energy efficiency • Peace of mind and investment protection
Flash Memory• 64 MB
Forwarding Rate• 95.23 mpps
Jumbo Frame• Frame sizes up to 9,216 supported
Led Indicators• System, Link/Act, Speed
Mac Address Table• Up to 8,192 Media Access Control
Management• HTTP/HTTPS; TFTP upgrade; DHCP client; Bootstrap Protocol (BOOTP); cable diagnostics; ping; traceroute; syslog
Material• Metala
Mtbf• 617,232 hours
Net Weight4.03 kg
Network Interface• 24x 10/100/1000 PoE+ (195W power budget) • 4x Gigabit 10G SFP+
Package Contents• Cisco Business 220 Series Ethernet switch • Power cord or adaptor • Mounting kit • Quick start guide
Poe• 195W power budget)
Power Consumption• 110V=248.7W • 220V=244.4W
Power Supply• 110V=36.9W • 220V=37.6W
Security• ACLs • Port security • IEEE 802.1X (authenticator role) • RADIUS, TACACS+ • MAC address filtering • Storm control • DoS protection • STP Bridge Protocol Data Unit (BPDU) Guard • Spanning Tree Loop Guard • Secure Shell (SSH) Protocol • Secure Sockets Layer (SSL)
Standards And Protocols• IEEE 802.3/u/ab, IEEE 802.3af/at, IEEE802.1Q, IEEE802802.1D/w/s, IEEE802.3ad
Switching Capacity• 128Gbps
Vlan• Support for up to 256 Virtual Local Area Networks (VLANs) simultaneously • Port-based and 802.1Q tag-based VLANs • Management VLAN • Guest VLAN
Warranty:3Y
