cisco

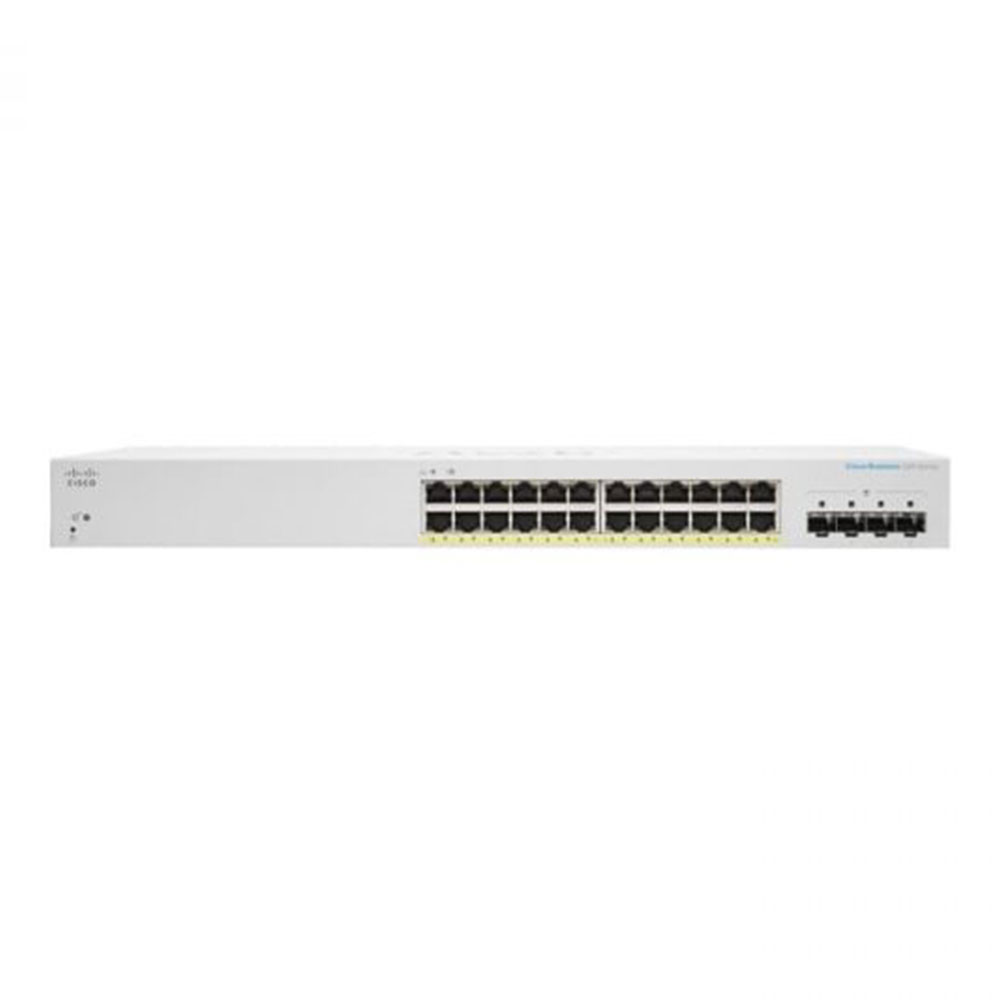

Gigabit Switching Hub 24 Port CISCO CBS220-24FP-4G-EU (17'',+4 SFP)
Switch
Price
฿22,145
SKU: A0167974
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports24
Warranty3Y
Additional Specifications
Buffer Architecture• Packet buffer 4.1 Mb
Certifications• UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick
Cpu Memory• 256 MB
Dimension(W x D x H) : 440.00 x 25.70 x 4.40 cm
Environment• Operating temperature : 0-50° C • Storage temperature : –20° C to +70° C • Operating humidity : 10% to 90%, relative, noncondensing • Storage humidity : 10% to 90%, relative, noncondensing
Fan Quantity• 2
Features• Web browser : Chrome, Firefox, Edge, Safari • Ethernet cable : Category 5e Ethernet network cable • Others : TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS) installed on each computer in the network
Flash Memory• 64 MB
Forwarding Rate• 41.66 (mpps; 64-byte packets)
Gross Weight6.12 KG
Jumbo Frame• Frame sizes up to 9,216 supported
Led Indicators• System, Link/Act, Speed
Mac Address Table• Up to 8,192 Media Access Control (MAC) addresses
Management• Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance, and monitoring
Material• Metal
Mtbf• 588,411 @ 25°C (hours)
Net Weight4.1 kg
Network Interface• 24× 10/100/1000 Mbps RJ45 Ports (PoE Power Budget 382W) • 4x SFP combo port
Package Contents• Cisco Business 220 Series Ethernet switch • Power cord or adaptor • Mounting kit • Quick start guide
Package Dimension(W x D x H) : 10.00 x 57.00 x 41.00 cm
Poe• 382W power budget
Power Consumption• System power consumption : 110V=30.8W , 220V=30.8W • Power consumption (with PoE) : 110V=459W , 220V=445W
Power Supply• 100-240 V
Security• ACLs • Port security • IEEE 802.1X (authenticator role) • RADIUS, TACACS+ • MAC address filtering • Storm control • STP Bridge Protocol Data Unit (BPDU) Guard • Spanning Tree Loop Guard • Secure Shell (SSH) Protocol • Secure Sockets Layer (SSL)
Standards And Protocols• IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP) IEEE 802.1Q/p VLAN, IEEE, 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication , IEEE 802.3af, IEEE 802.3at
Switching Capacity• 56Gbps
Vlan• Support for up to 256 Virtual Local Area Networks (VLANs) simultaneously • Port-based and 802.1Q tag-based VLANs • Management VLAN • Guest VLAN
Volume23,370.00 cm3
Warranty:3Y
