cisco

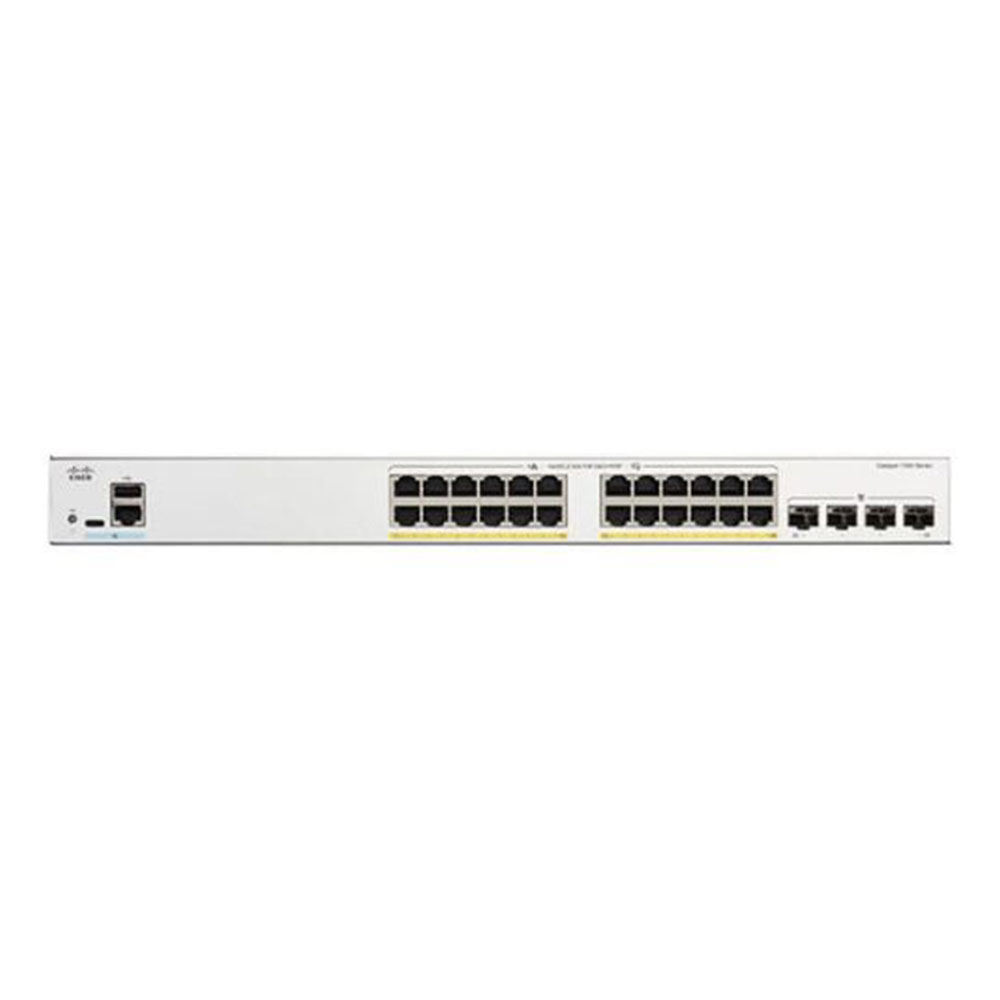

Gigabit Switching Hub 24 Port CISCO C1300-24T-4X (17'',+4 SFP)
Switch
Price
฿40,160
SKU: A0156995
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports24
WarrantyLT.
Additional Specifications
CertificationsUL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
CpuARM dual-core
Cpu Memory1.4 GHz
Dimension(W x D x H) : 44.50 x 24.00 x 4.40 cm
EnvironmentOperating temperature : 23° to 122°F (-5° to 50°C) 32° to 122°F (0° to 50°C) Storage temperature : -13° to 158°F (-25° to 70°C) Operating humidity : 10% to 90%, relative, noncondensing Storage humidity : 10% to 90%, relative, noncondensing
Fan QuantityFanless
Flash Memory512 MB
Gross Weight5.16 KG
Jumbo FrameFrame sizes up to 9000 bytes. The default MTU is 2000 bytes
Led IndicatorsSystem, Link/Act , Speed
Mac Address Table16K addresses
ManagementCisco Business mobile app Web user interface
MaterialMetal
Mtbf2,026,793 MTBF at 25°C (hours)
Net Weight2.78 kg
Network Interface24x 10/100/1000 ports 4x 10 Gigabit SFP+
Package Contents- Cisco Catalyst 1300 Series Switch - Power cord (power adapter for select 8-port and 16-port SKUs) - Mounting kit - Pointer card
Package Dimension(W x D x H) : 11.00 x 57.00 x 42.00 cm
Packet Buffer Memory1.5 MB
Power Consumption22.4W
Power Supply100-240V 50-60 Hz
SecuritySecure Sockets Layer (SSL) , SSH Protocol , IEEE 802.1X (authenticator role) , STP loopback guard , Secure Core Technology (SCT) , Secure Sensitive Data (SSD) , Trustworthy systems , Port security , RADIUS , Storm control , DoS prevention , Multiple user privilege levels in CLI , ACLs
Standards And ProtocolsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication
Switching Capacity128Gbps
Usb PortUSB Type C port
Vlan- Support for up to 4093 VLANs simultaneously - Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN - Management VLAN - Private VLAN with promiscuous, isolated, and community port - Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks - Guest VLAN, unauthenticated VLAN - Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication - Customer premises equipment (CPE) VLAN - Auto surveillance VLAN (ASV)
Volume26,334.00 cm3
Warranty:LT.
