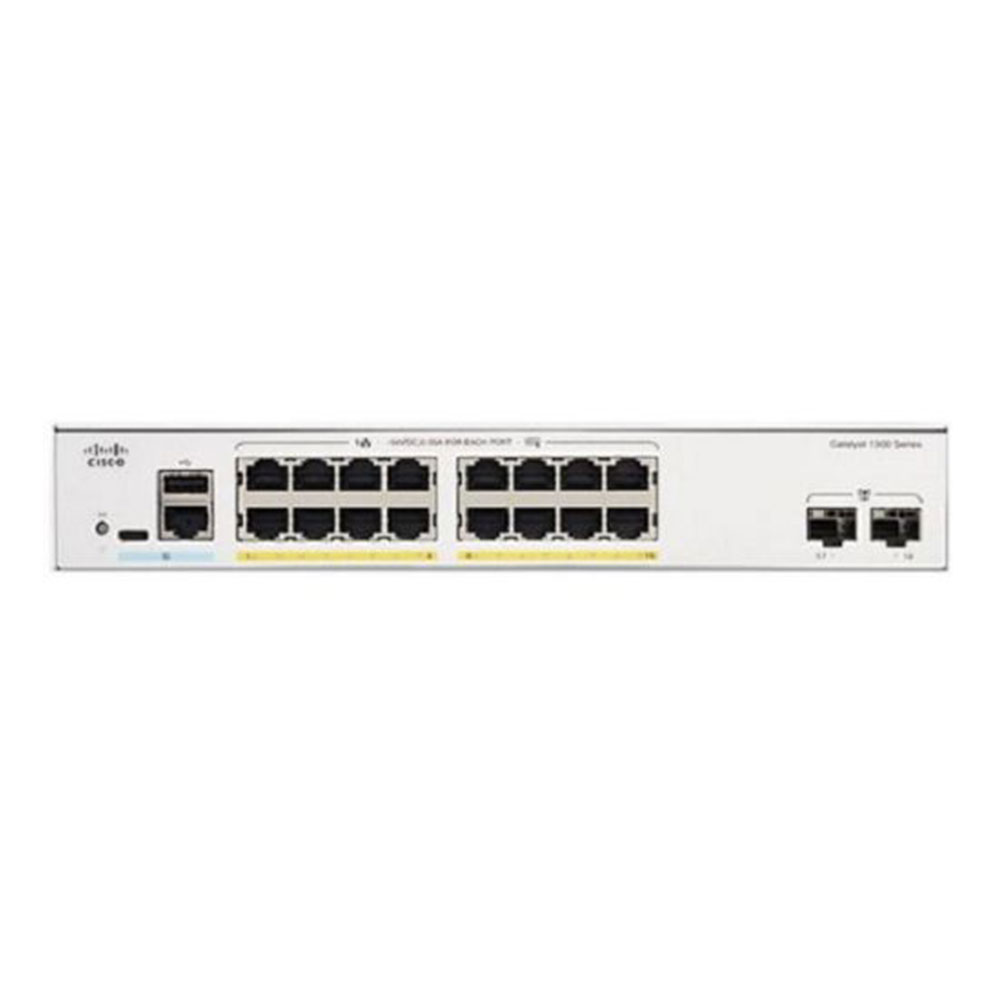

Gigabit Switching Hub 16 Port CISCO Catalyst C1300-16P-2G (11'',16POE +2 SFP)
Switch
Price
฿23,948
SKU: A0156986
Technical Specifications
Network Specifications
Device TypeSwitch
Speed10/100/1000
Build
Ports16
WarrantyLT.
Additional Specifications
CertificationsUL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
CpuARM dual-core
Cpu Memory1.4 GHz
Dimension(W x D x H) : 26.80 x 29.70 x 4.40 cm
EnvironmentOperating temperature : 23° to 122°F (-5° to 50°C) 32° to 122°F (0° to 50°C) Storage temperature : -13° to 158°F (-25° to 70°C) Operating humidity : 10% to 90%, relative, noncondensing Storage humidity : 10% to 90%, relative, noncondensing
Fan QuantityFanless
Flash Memory512 MB
Gross Weight4.00 KG
Jumbo FrameFrame sizes up to 9000 bytes. The default MTU is 2000 bytes
Led IndicatorsSystem, Link/Act , PoE , Speed
Mac Address Table16K addresses
ManagementCisco Business mobile app Web user interface
MaterialMetal
Mtbf706,983 MTBF at 25°C (hours)
Net Weight2.38 kg
Network Interface16x 10/100/1000 PoE+ ports with 120W power budget 2x Gigabit SFP
Package Contents- Cisco Catalyst 1300 Series Switch - Power cord (power adapter for select 8-port and 16-port SKUs) - Mounting kit - Pointer card
Package Dimension(W x D x H) : 10.00 x 39.00 x 40.00 cm
Packet Buffer Memory1.5 MB
Poe120W
Power ConsumptionSystem power consumption : 20.5W Power consumption (with PoE) : 151W
Power Supply100-240V 50-60 Hz
SecuritySecure Sockets Layer (SSL) , SSH Protocol , IEEE 802.1X (authenticator role) , STP loopback guard , Secure Core Technology (SCT) , Secure Sensitive Data (SSD) , Trustworthy systems , Port security , RADIUS , Storm control , DoS prevention , Multiple user privilege levels in CLI , ACLs
Standards And ProtocolsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet
Switching Capacity36Gbps
Usb PortUSB Type C port
Vlan- Support for up to 4093 VLANs simultaneously - Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN - Management VLAN - Private VLAN with promiscuous, isolated, and community port - Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks - Guest VLAN, unauthenticated VLAN - Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication - Customer premises equipment (CPE) VLAN - Auto surveillance VLAN (ASV)
Volume15,600.00 cm3
Warranty:LT.
