asus

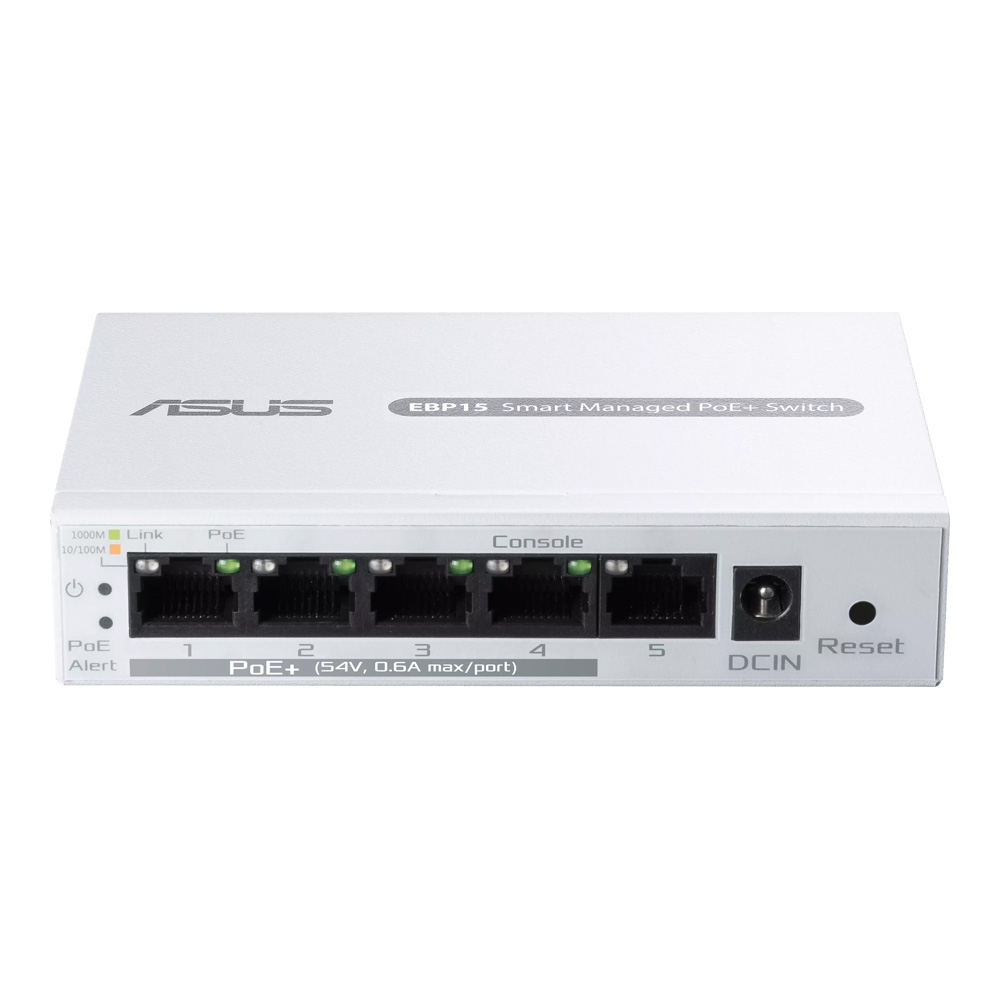

Gigabit Switching Hub 5 Port ASUS ExpertWiFi EBP15 (5'')
Switch / N/A (Wired)
Price
฿2,565
SKU: A0165151
Technical Specifications
Network Specifications
Device TypeSwitch
Wi-Fi StandardN/A (Wired)
Speed10/100/1000
Build
Ports• 5x 10/100/1000Mbps RJ45 Ports (Port PoE 1-4 )
AntennaNone (Internal)
Warranty3Y
Additional Specifications
Buffer Architecture• 4 Mbits
Dimension(W x D x H) : 12.10 x 7.50 x 2.60 cm
Environment• Operating Temperature: 0°C~40°C (32°F~104°F) • Storage Temperature: -20°C~70°C (-4°F~158°F) • Operating Humidity: 10%~95%RH non-condensing • Storage Humidity: 5%~95%RH non-condensing
Features• ExpertWiFi AiMesh Mode (with ExpertWiFi router only): centrally control the connected devices via ASUSWRT/ExpertWiFi app • Standalone Mode: IGMP Snooping, VLAN, Loop Detection/Prevention, Port Mirroring, Port-based QoS, 802.1p CoS, Firmware Update, PoE priority setting, PoE status
Gross Weight1.15 KG
Led Indicators• System power ON/OFF • PoE Alert • Link, Speed, activity, and PoE indicators per port built into each RJ-45 port
Mac Address Table• Up to 8 K
Management• Quality of Service • IGMP Snooping • Port Mirroring • Loop Detection/Prevention • Web-based GUI • ExpertWiFi APP (with ExpertWiFi products only)
Material• Metal
Net Weight0.24 kg
Network Interface• 5x 10/100/1000Mbps RJ45 Ports (Port PoE 1-4 )
Package Contents• ExpertWiFi EBP15 • RJ45 Ethernet Cable • Power Adapter • Quick Start Guide • Warranty Card
Package Dimension(W x D x H) : 23.00 x 21.00 x 9.00 cm
Poe• Standard: 802.3 af/at compliant • PoE Ports: Port 1 - Port 4 • Per Port Max: 30W
Power Supply• AC input: 100V~240V (50~60 Hz) • DC output: 54V with 1.25A
Security• SSL/TLS
Standards And Protocols• IEEE 802.1p • IEEE 802.1q • IEEE 802.3ab • IEEE 802.3af • IEEE 802.3at • IEEE 802.3i • IEEE 802.3u • IEEE 802.3x • IPv4
Switching Capacity• 16Gbps
Volume4,347.00 cm3
Warranty:3Y
