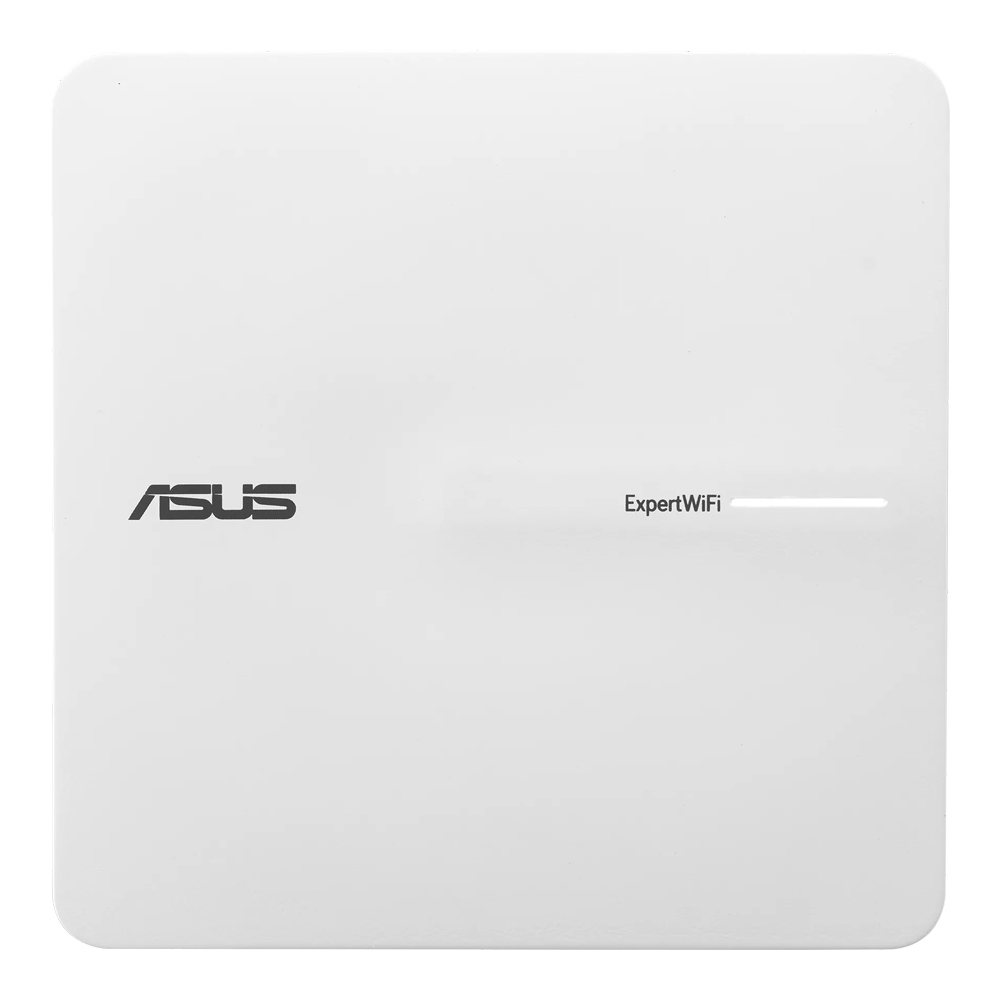

Access Point ASUS ExpertWiFi EBA63 POE AX3000 Dual-Band WiFi 6
Access Point / Wi-Fi 6 (802.11ax/ac/n/a/b/g)
Price
฿4,326
SKU: A0165148
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardWi-Fi 6 (802.11ax/ac/n/a/b/g)
Speed• 802.11a : up to 54 Mbps / • 802.11b : up to 11 Mbps / • 802.11g : u…
Build
Ports• 1x 10/100/1000 Gigabit Ethernet Port (support PoE)
Antenna• 4x Internal antenna
Warranty3Y
Additional Specifications
Antennas• 4x Internal antenna
Button• Reset Button
Data Rate• 802.11a : up to 54 Mbps • 802.11b : up to 11 Mbps • 802.11g : up to 54 Mbps • WiFi 4 (802.11n) : up to 300 Mbps • WiFi 5 (802.11ac) : up to 1734 Mbps • WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps • WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Dimension(W x D x H) : 16.00 x 16.00 x 4.20 cm
Features• Seamless and Extendable Connections • Secure and Segmented Networking • Flexible Deployment with PoE • Accommodate to Any Space • Built for Safety and Reliability
Frequency• 2.4GHz / 5GHz
Gross Weight0.80 KG
Interface• 1x 10/100/1000 Gigabit Ethernet Port (support PoE)
Ipv6 Support• Yes
Leds• 2x Power
Management• Easy management app
Net Weight0.42 kg
Operation Mode• AiMesh Node Mode • Access Point Mode
Package Contents• ExpertWiFi EBA63 • RJ-45 cable • Power adapter • Warranty card • Quick start guide • Wall-mount kit
Package Dimension(W x D x H) : 26.00 x 18.00 x 6.00 cm
Power Consumption• US: 10.0W • EU: 9.1W
Power Supply• 12 V with max. 1.5 A current DC (power adapter included)
Power Supply Poe• 802.3af PoE
Power SwitchYES
Processor Specs• 1.7 GHz quad-core processor
Size Of Ram• 256 MB Flash • 512 MB RAM
Standards• IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • WiFi 4 (802.11n) • WiFi 5 (802.11ac) • WiFi 6 (802.11ax)
Transmit Receive• 2.4GHz 2x2 • 5GHz 2x2
Volume2,808.00 cm3
Wireless Functions• UTF-8 SSID • WiFi MAC Address Filter • Maximum MAC Filters : 64 • Wireless Scheduler
Warranty:3Y
