advice

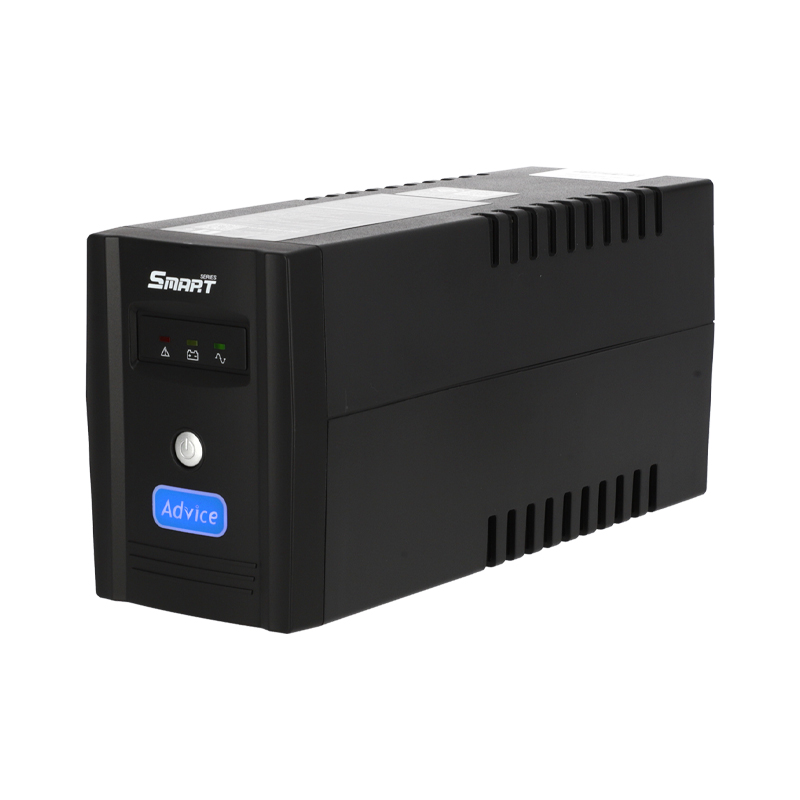

UPS 800VA ADVICE SMART LED ประกันเปลี่ยนตัวใหม่ (2ปีแรก) สเปค ICT ปี 2566 งบ 2,500 บาท
Line interactive / 800 VA
Price
฿1,720
SKU: A0123854
Technical Specifications
UPS Specifications
TypeLine interactive
Capacity (VA)800 VA
Capacity (Watt)480 W
Battery Typeแบตเตอรี่ชนิดแห้ง (Sealed acid)
Backup Time15 minute (Depend on Load)
Input & Output
Output Socket4 Universal (3 Backup 1 Surge)
Backup Ports3
Bypass Ports1
Input Voltage220VAC ±35% 50Hz ±10%
Build
Dimension(W x D x H) : 9.98 x 29.60 x 14.30 cm
Warranty2*2*0
Additional Specifications
Battery Replacement1x 12 V 7.2 AH (High Rate Discharge)
FeaturesLogo Blue LED Super bright TISI : ISO 9001,ISO 14001
Gross Weight4.79 KG
Indicator Audible Alam ProtectionLED Indicator : Online , On Battery , Fault
Net Weight4.41 kg
Nominal Input Voltage220VAC ±35% 50Hz ±10%
Nominal Output Voltage220VAC ±10% 50Hz ±0.1%
Output Connections4 Universal (3 Backup 1 Surge)
Package Dimension(W x D x H) : 35.80 x 14.20 x 22.50 cm
Rated Capacity800VA / 480 Watts
Transfer Time2-4 ms
TypeLine interactive
Typical Recharge TimeRecharge time 6-8 hour 90% after complete discharge
Volume11,438.10 cm3
Waveform TypeModified sine wave
Warranty:2*2*0
