advice

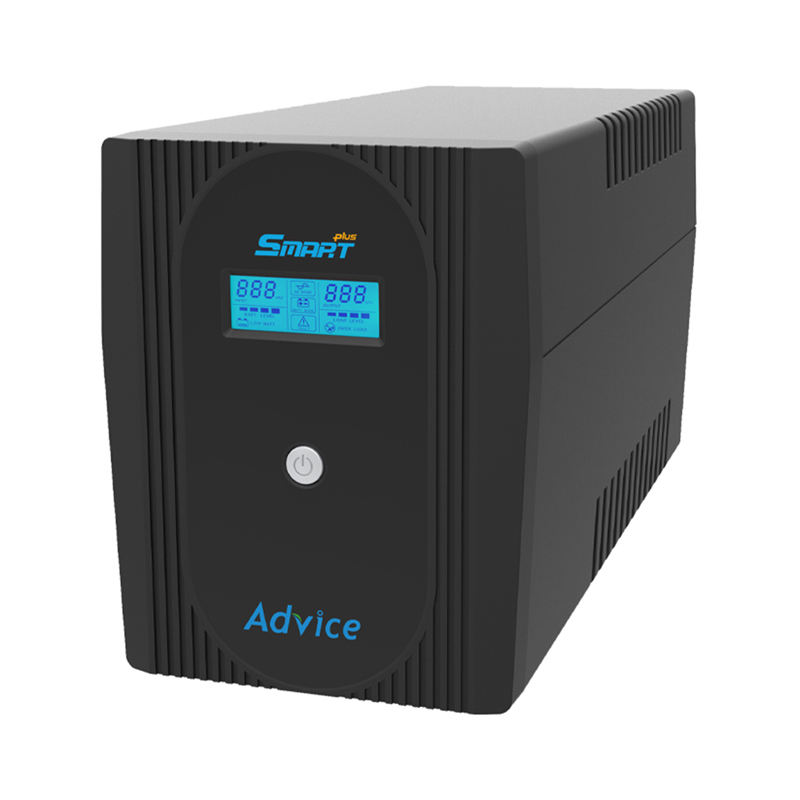

UPS 2000VA ADVICE SMART PLUS
Line Interactive (Simulated Sinewave) / 2000 VA
Price
฿5,500
SKU: A0151573
Technical Specifications
UPS Specifications
TypeLine Interactive (Simulated Sinewave)
Capacity (VA)2000 VA
Capacity (Watt)1200 Watts
Battery TypeSealed lead acid maintenance free
Backup Time15-60 Min. (Depend on load)
Input & Output
Output Socket8 Outlet (6 Backup + 2 Bypass)
Backup Ports6
Bypass Ports2
Input Voltage220 Vac ±35%
Build
Dimension(W x D x H) : 38.00 x 15.80 x 19.80 cm
Warranty2*2*0
Additional Specifications
Battery Replacement2x 12 V 9.0 AH (High Rate Discharge)
Display• AC Mode • Battery Mode • Load Level • Battery Level • Input Voltage • Output Voltage • Fault and Battery Low
Gross Weight12.06 KG
Indicator Audible Alam Protection• Battery mode • Low Battery • Overload • Battery Replacement Alarm • Fault
Input Frequency50Hz +-10%
Interface Port• USB • RJ45 Modem internet protection
Net Weight10.5 kg
Nominal Input VoltageVOLTAGE RANGE : 220 Vac +-35%
Nominal Output Voltage• AC VOLTAGE REGULATION (Batt.Mode) : 220 Vac +-5% • FREQUENCY REGULATION : 50Hz +-1%
Output Connections8 Outlet ( 6 Backup + 2 Bypass)
Package Dimension(W x D x H) : 22.00 x 45.00 x 29.00 cm
Rated Capacity2000 VA / 1200 Watts
Transfer TimeTypical 2~4ms, 10ms Max.
TypeLine Interactive UPS with simulated sinewave
Typical Recharge Time6~8 Hours to 90% after complete discharge
Volume28,710.00 cm3
Waveform TypeSimulated sinewave
Warranty:2*2*0
