advice

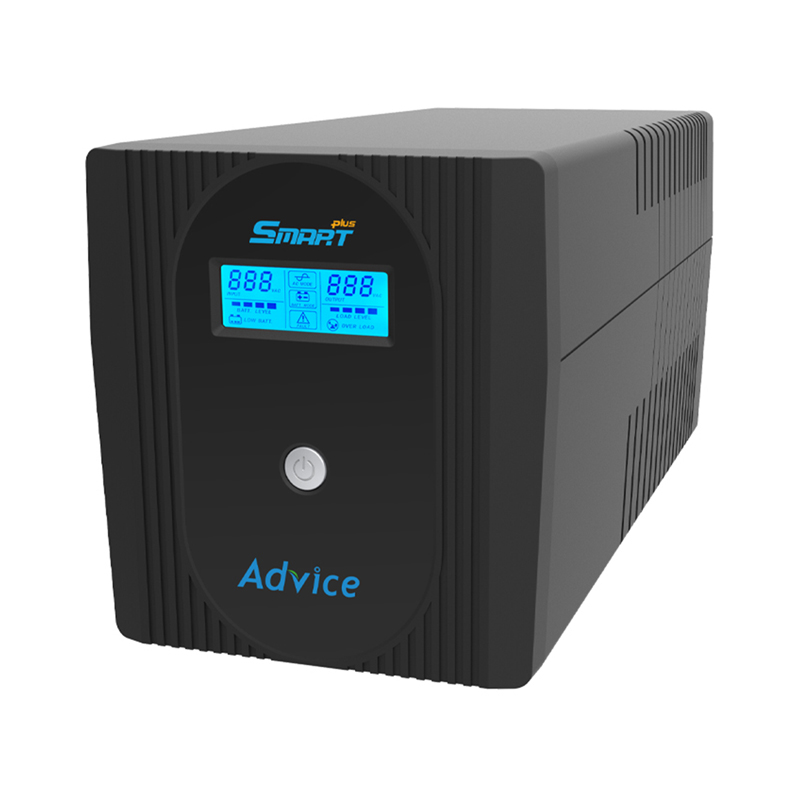

UPS 1200VA ADVICE SMART PLUS ประกันเปลี่ยนตัวใหม่ (2ปีแรก)
Line Interactive UPS with simulated sinewave / 1200 VA
Price
฿3,389
SKU: A0151571
Technical Specifications
UPS Specifications
TypeLine Interactive UPS with simulated sinewave
Capacity (VA)1200 VA
Capacity (Watt)720 W
Battery TypeSealed lead acid maintenance free
Backup Time15-60 Min. (Depend on load)
Input & Output
Output Socket8 Outlet ( 6 Backup + 2 Bypass)
Backup Ports6
Bypass Ports2
Input VoltageVOLTAGE RANGE : 220 Vac +-35%
Build
Dimension(W x D x H) : 35.30 x 14.90 x 16.20 cm
Warranty2*2*0
Additional Specifications
Battery Replacement2x 12 V 7.2 AH (High Rate Discharge)
Display• AC Mode • Battery Mode • Load Level • Battery Level • Input Voltage • Output Voltage • Fault and Battery Low
Gross Weight9.08 KG
Indicator Audible Alam Protection• Battery mode • Low Battery • Overload • Battery Replacement Alarm • Fault
Input Frequency50Hz +-10%
Interface Port• USB • RJ45 Modem internet protection
Net Weight8.4 kg
Nominal Input VoltageVOLTAGE RANGE : 220 Vac +-35%
Nominal Output Voltage• AC VOLTAGE REGULATION (Batt.Mode) : 220 Vac +-5% • FREQUENCY REGULATION : 50Hz +-1%
Output Connections8 Outlet ( 6 Backup + 2 Bypass)
Package Dimension(W x D x H) : 20.00 x 41.00 x 24.00 cm
Rated Capacity1200 VA / 720 Watt
Transfer TimeTypical 2~4ms, 10ms Max.
TypeLine Interactive UPS with simulated sinewave
Typical Recharge Time6~8 Hours to 90% after complete discharge
Volume19,680.00 cm3
Waveform TypeSimulated sinewave
Warranty:2*2*0
