advice

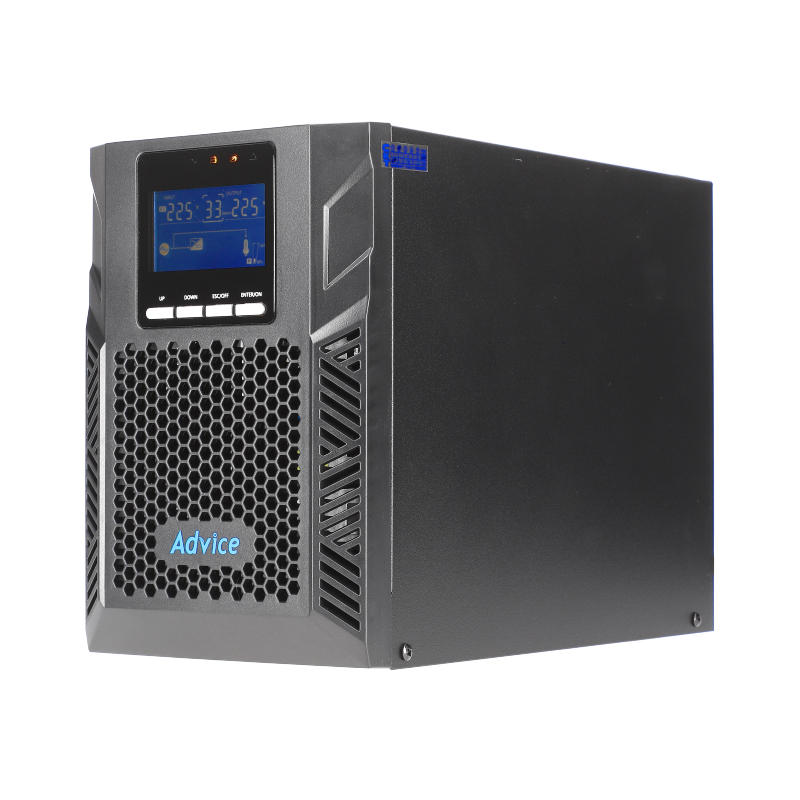

UPS 1000VA ADVICE H1000 ประกันเปลี่ยนตัวใหม่ (2ปีแรก)
True Online / 1000 VA
Price
฿14,420
SKU: A0152804
Technical Specifications
UPS Specifications
TypeTrue Online
Capacity (VA)1000 VA
Capacity (Watt)900 W
Battery TypeDepends on the capacity of external batteries
Backup TimeLong run unit depends on the capacity of external batteries
Input & Output
Output Socket3 Outlet (Backup)
Backup Ports3
Input Voltage• RATED VOLTAGE : 200/208/220/230/240VAC (Selectable) • VOLTAGE RANG : 110VAC+ - 5% -300VAC +-5% • POWER FACTOR : 0.99 • BYPASS VOLTAGE : 170VAC-264VAC (Setting By LCD) • CURRENT HARMONIC (THDi) : <3%(100% Non-Linear Load)
Build
Dimension(W x D x H) : 14.40 x 20.90 x 29.30 cm
Warranty2*0*2
Additional Specifications
Battery Replacement12 V 9.0 AH x4 capacity of external batteries
DisplayLCD (Indicator)
Gross Weight5.42 KG
Indicator Audible Alam ProtectionLine mode Bat.mode ECO mode Bypass mode Battery low voltage Overload & UPS fault
Input Frequency40-70 Hz
Interface PortUSB RS232 SNMPcard (Optional) Relay card (Optional) ขั่วต่อ EPO (Option) External batteries RJ45 Net Surge protection
Net Weight0 kg
Nominal Input Voltage• RATED VOLTAGE : 200/208/220/230/240VAC (Selectable) • VOLTAGE RANG : 110VAC+ - 5% -300VAC +-5% • POWER FACTOR : 0.99 • BYPASS VOLTAGE : 170VAC-264VAC (Setting By LCD) • CURRENT HARMONIC (THDi) : <3%(100% Non-Linear Load)
Nominal Output Voltage• RATED VOLTAGE : 220VAC • POWER FACTOR : 0.9 • VOLTAGE REGULATION : 220VAC+-1% • FREQUENCY LINE MODE : 47-53 Hz • FREQUENCY BATTERY MODE : 50/60 Hz+-0.1%
Output Connections3 Outlet (Backup)
Package Dimension(W x D x H) : 22.00 x 37.20 x 31.50 cm
Rated Capacity1000 VA / 900 Watts
TypeTrue Online
Typical Recharge Time4 hours recover to 90 % capacity
Volume25,779.60 cm3
Waveform TypePure Sinewave
Warranty:2*0*2
