access

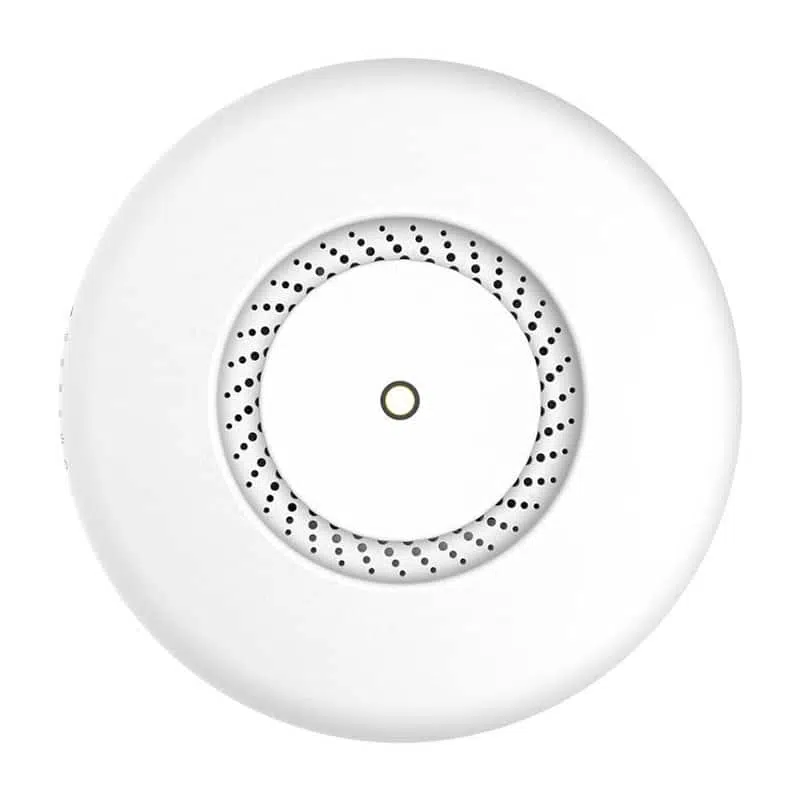

Access Point MIKROTIK (RbcAPGi-5acD2nD) Wireless AC1200 Dual Band Gigabit
Access Point / AC1200
Price
฿3,595
SKU: A0122912
Technical Specifications
Network Specifications
Device TypeAccess Point
Wi-Fi StandardAC1200
Speed10/100/1000
Build
AntennaWireless 2.4 GHz number of chains : 2 Antenna gain dBi for 2.4 GHz : 2 Wireless 5 GHz number of chains : 2 Antenna gain dBi for 5 GHz : 2.5
Warranty1Y
Additional Specifications
Data RateAC speed : AC1200 Wireless 2.4 GHz Max data rate : 300 Mbit/s Wireless 5 GHz Max data rate : 867 Mbit/s
Data RatesAC speed : AC1200 Wireless 2.4 GHz Max data rate : 300 Mbit/s Wireless 5 GHz Max data rate : 867 Mbit/s
Dimension(W x D x H) : 18.00 x 27.00 x 6.00 cm

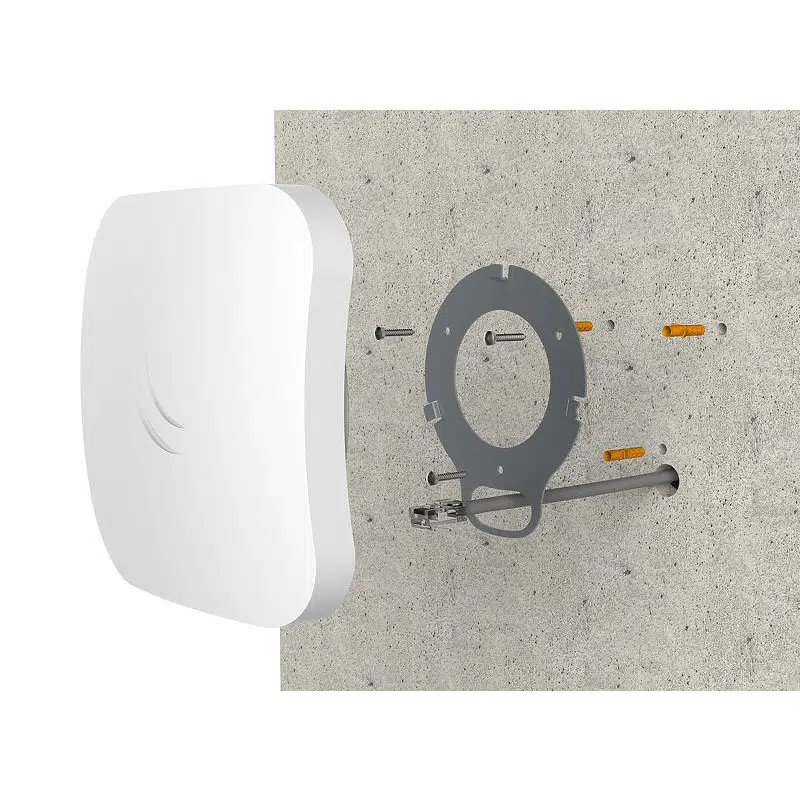

DimensionsRound case: ⌀ 136 mm, height: 30 mm Square case: 145 mm x 145 mm x 30 mm
EnvironmentTested ambient temperature : -40°C to 50°C
Frequency RangeWireless 2.4 GHz Wireless 5 GHz
Gross Weight0.67 KG
Interface2 x 10/100/1000 Ethernet ports
Led Indicators7 x LEDs (1x user LED)
Net Weight0.67 kg

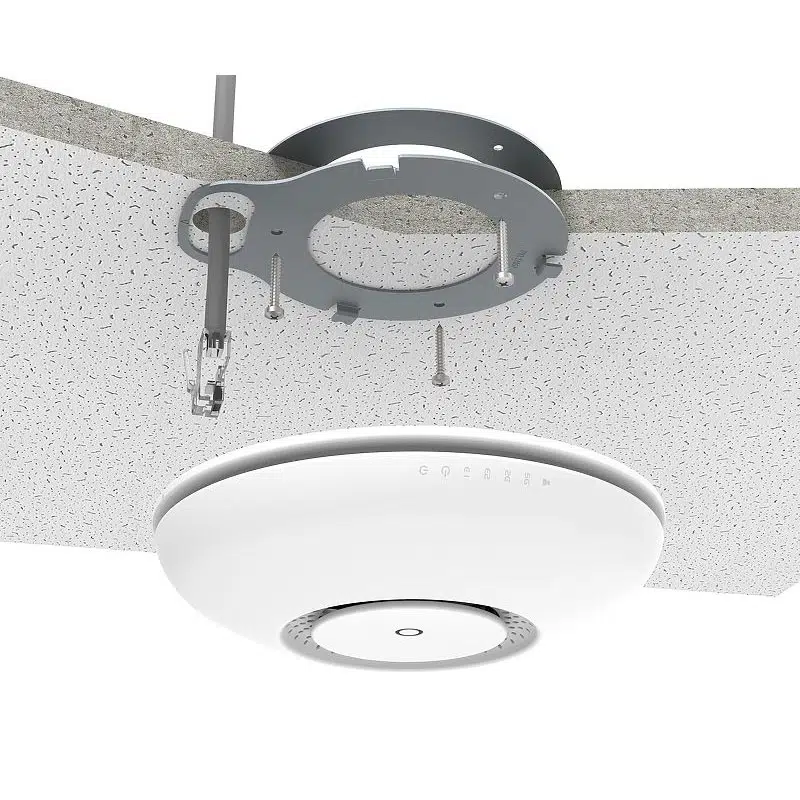

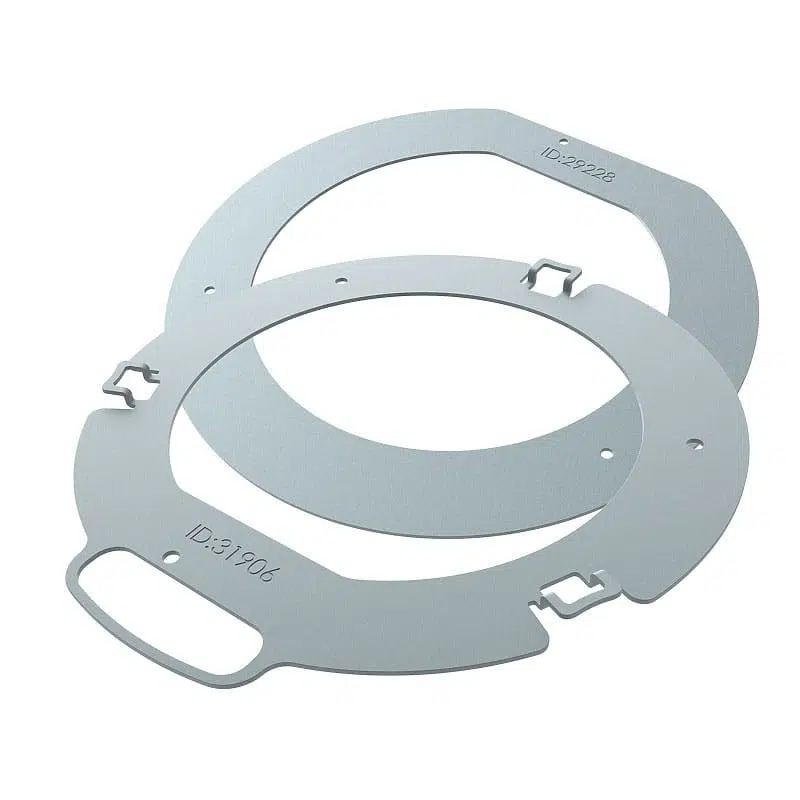

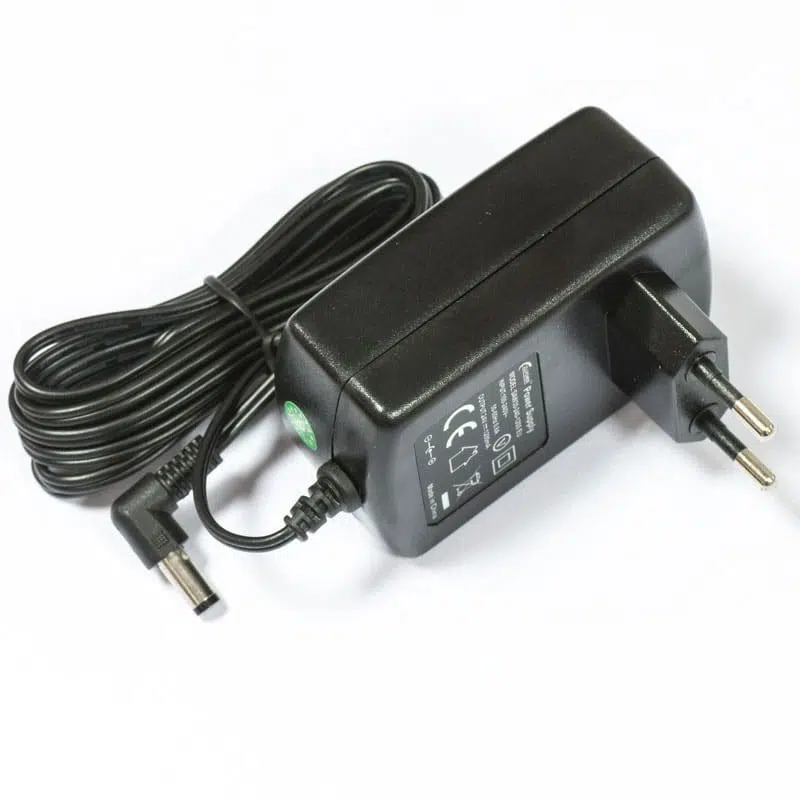

Package Contents24V 1.2A power adapter Ceiling mount Gigabit PoE injector K-46 screw kit
Package Dimension(W x D x H) : 18.00 x 27.00 x 6.00 cm
PoePoE in : 802.3af/at PoE out : Passive PoE up to 57V (Passive, Ethernet port 2) PoE in input Voltage : 17-57 V
Power ConsumptionMax power consumption : 24 W Max power consumption without attachments : 13 W
Power SupplyNumber of DC inputs : 1 (PoE-IN) Max out per port output (input > 30 V) : 400 mA Max out per port output (input < 30 V) : 500 mA Max total out (A) : 500 mA
Standards And ProtocolWireless 2.4 GHz standards : 802.11b/g/n Wireless 5 GHz standards : 802.11a/n/ac
Standards And ProtocolsWireless 2.4 GHz standards : 802.11b/g/n Wireless 5 GHz standards : 802.11a/n/ac
Volume2,916.00 cm3
Warranty:1Y
